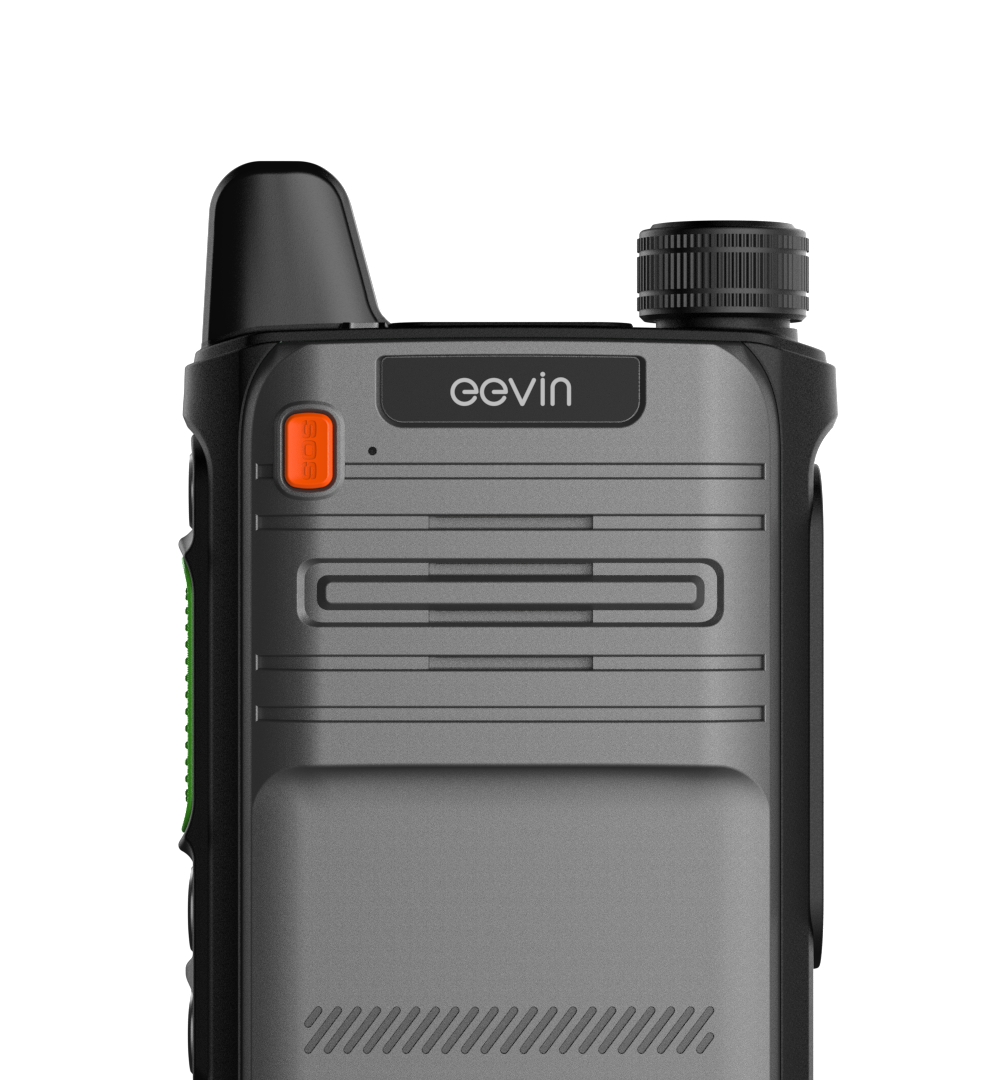

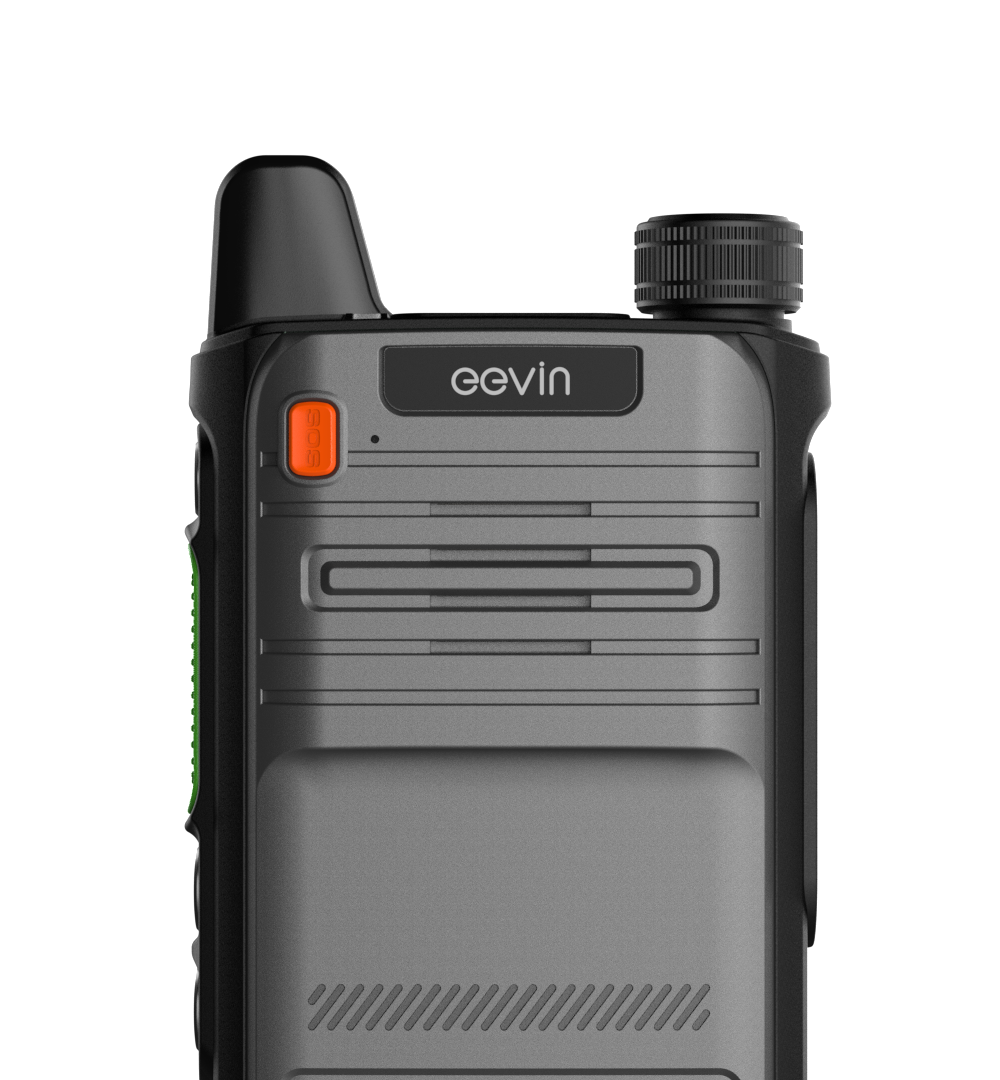

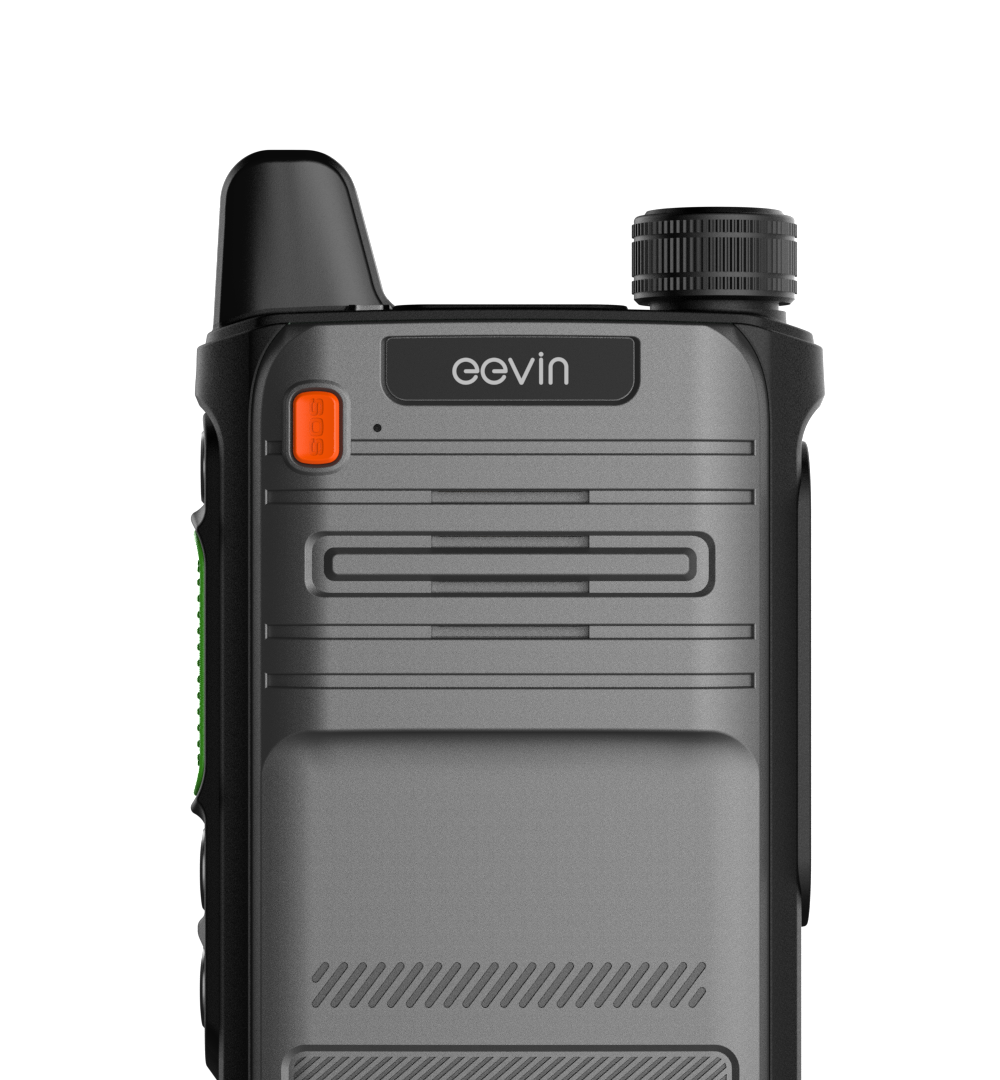

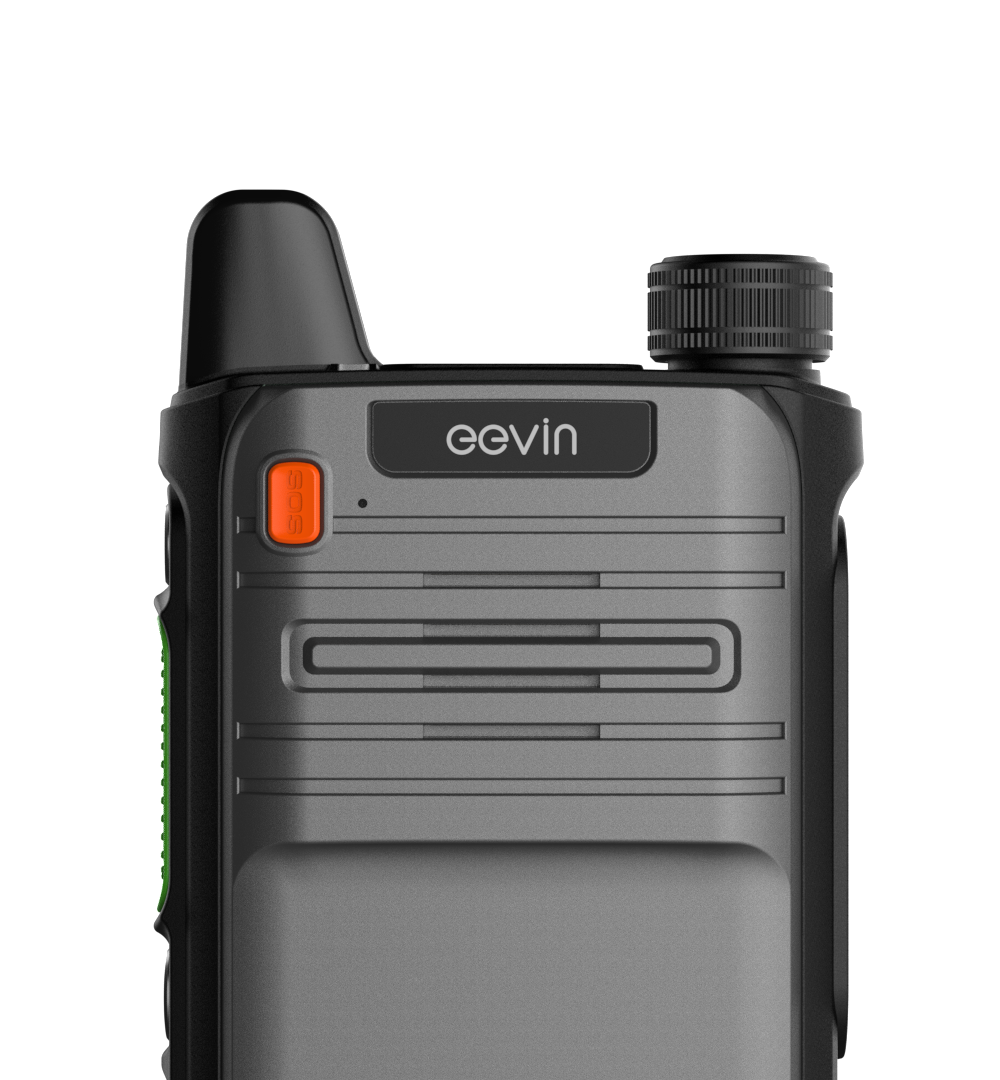

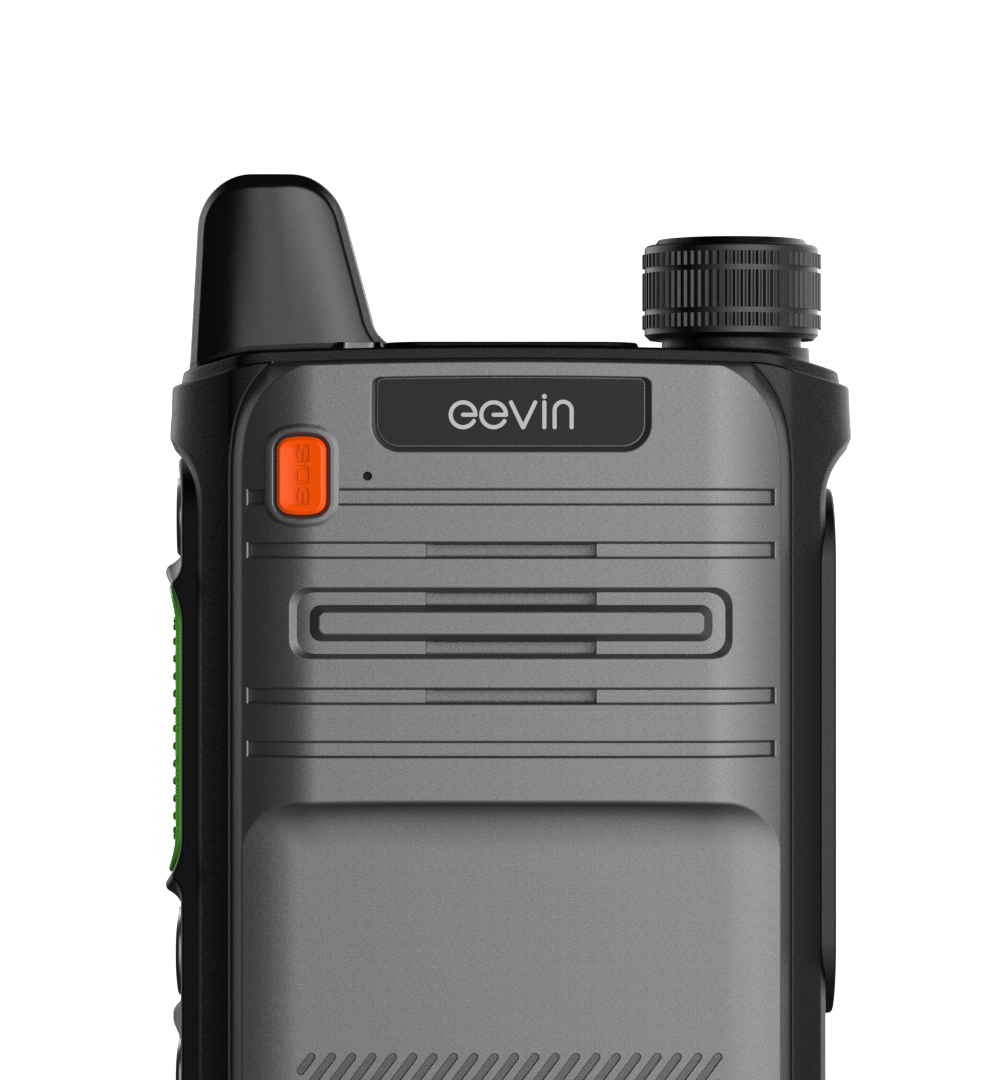

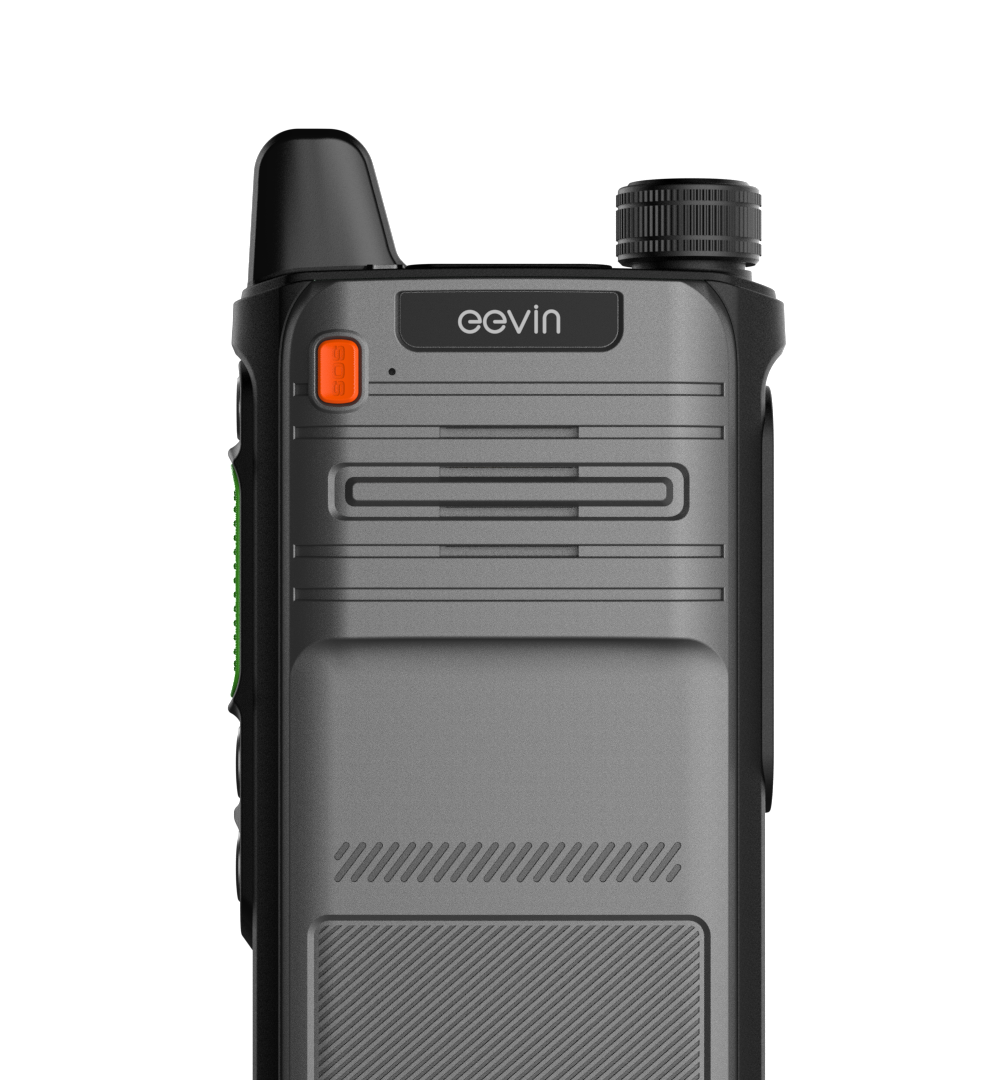

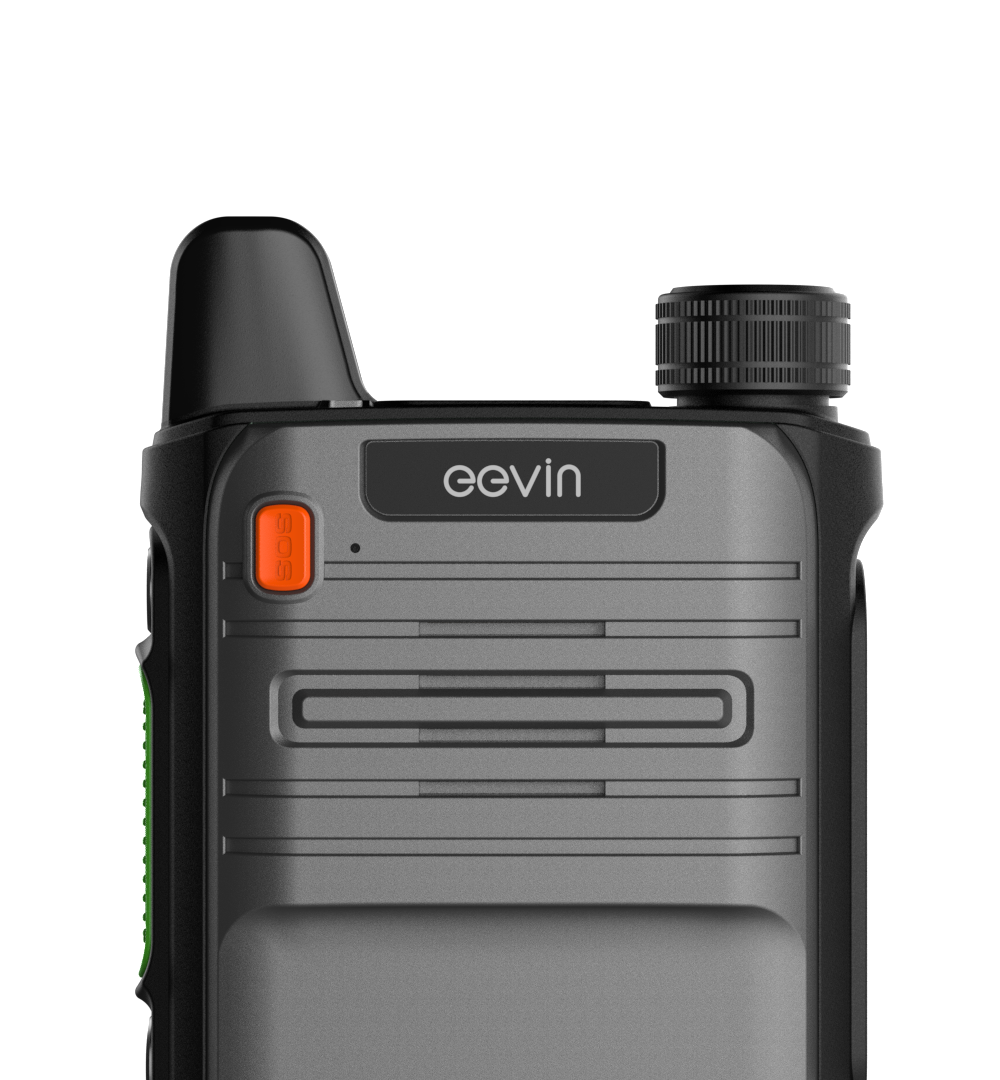

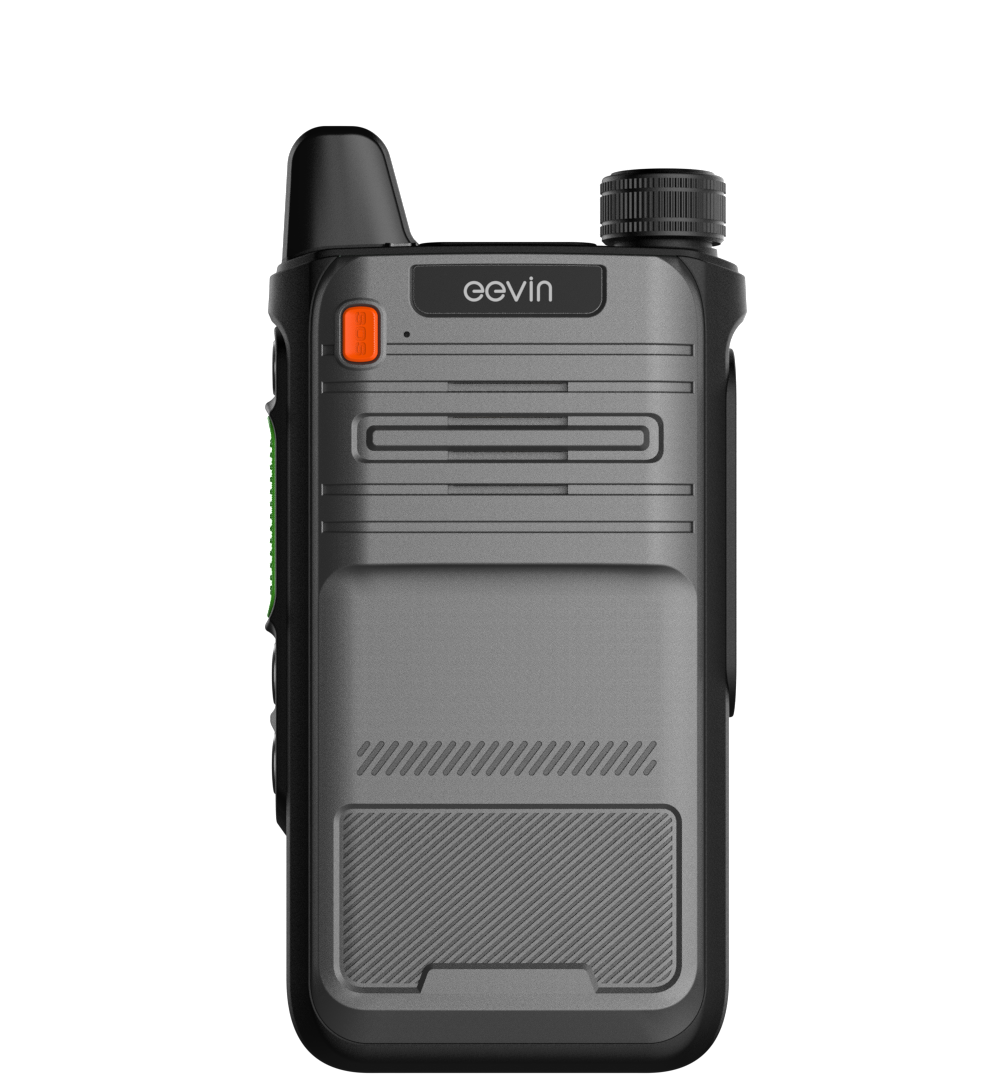

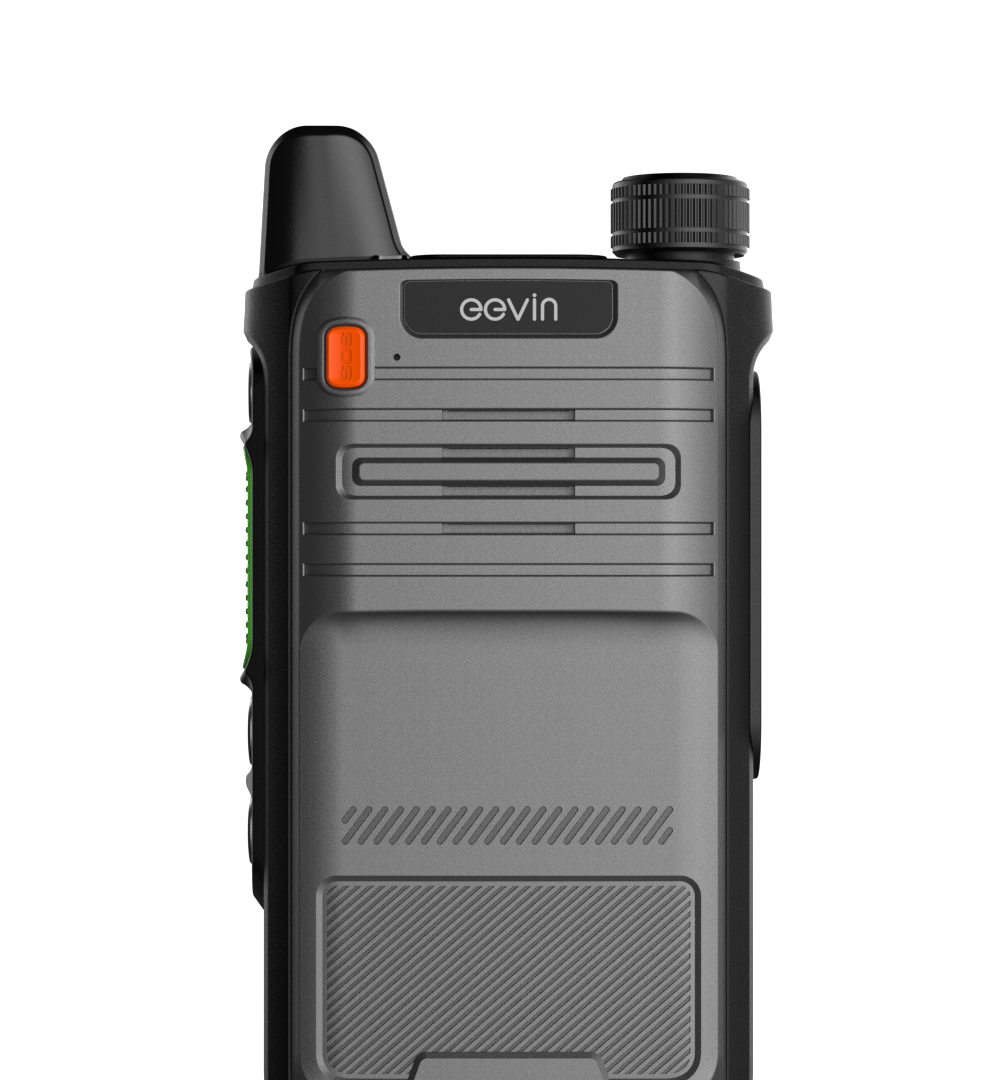

8 ohms/1 watt speaker,External speaker volume: 105dB with noise reduction modules
8 ohms/1 watt speaker,External speaker volume: 105 dB
with noise reduction modules

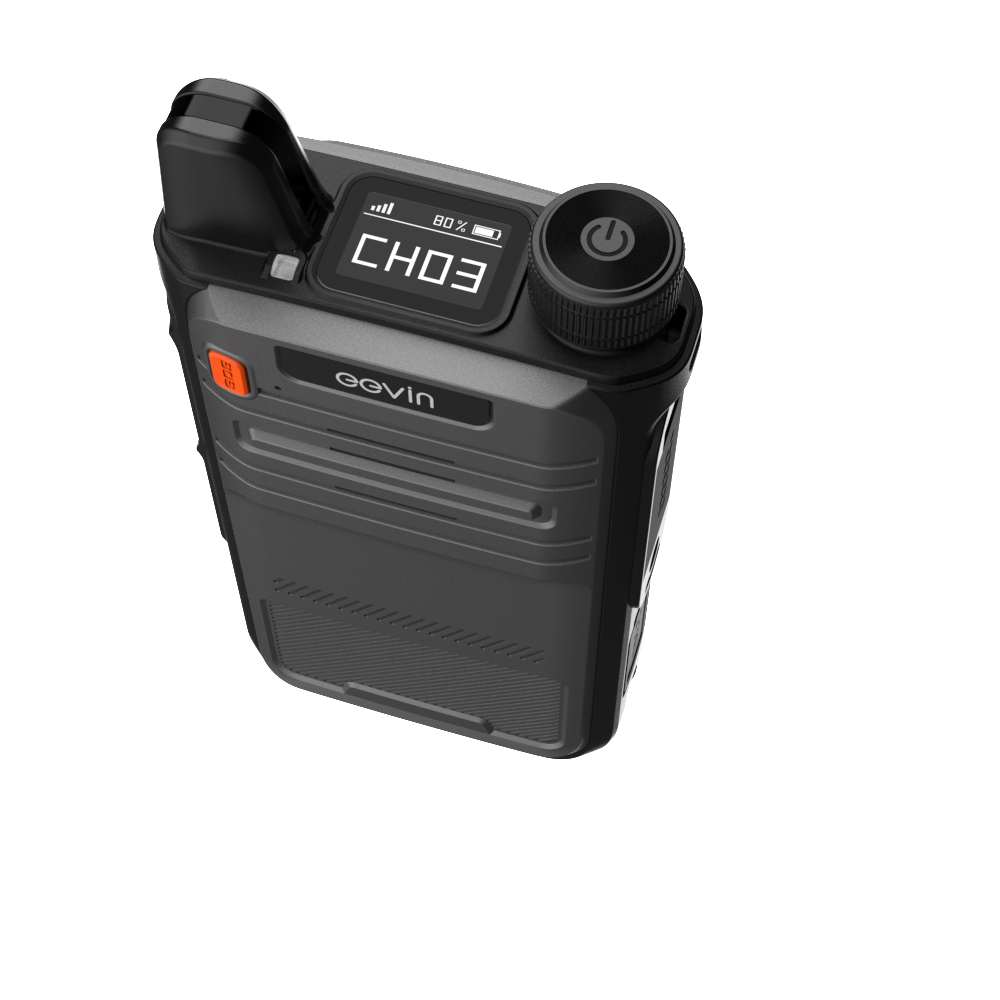

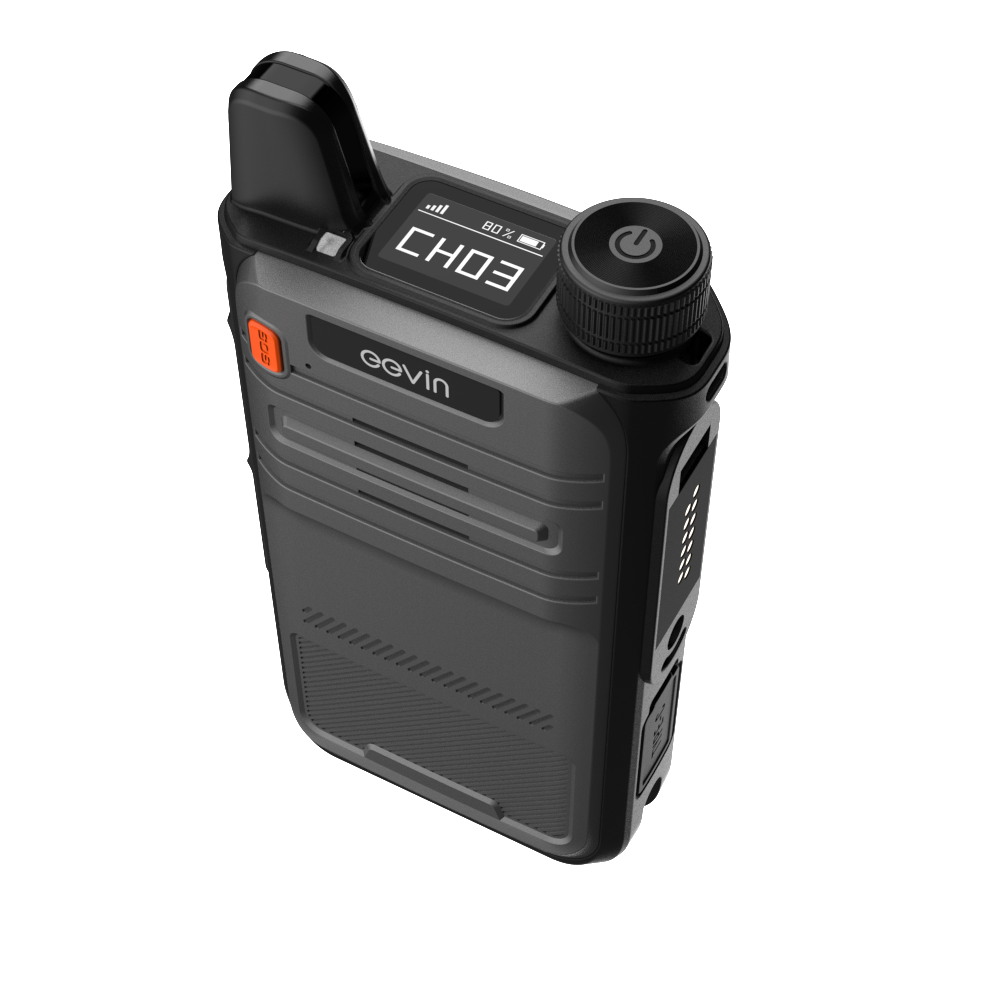

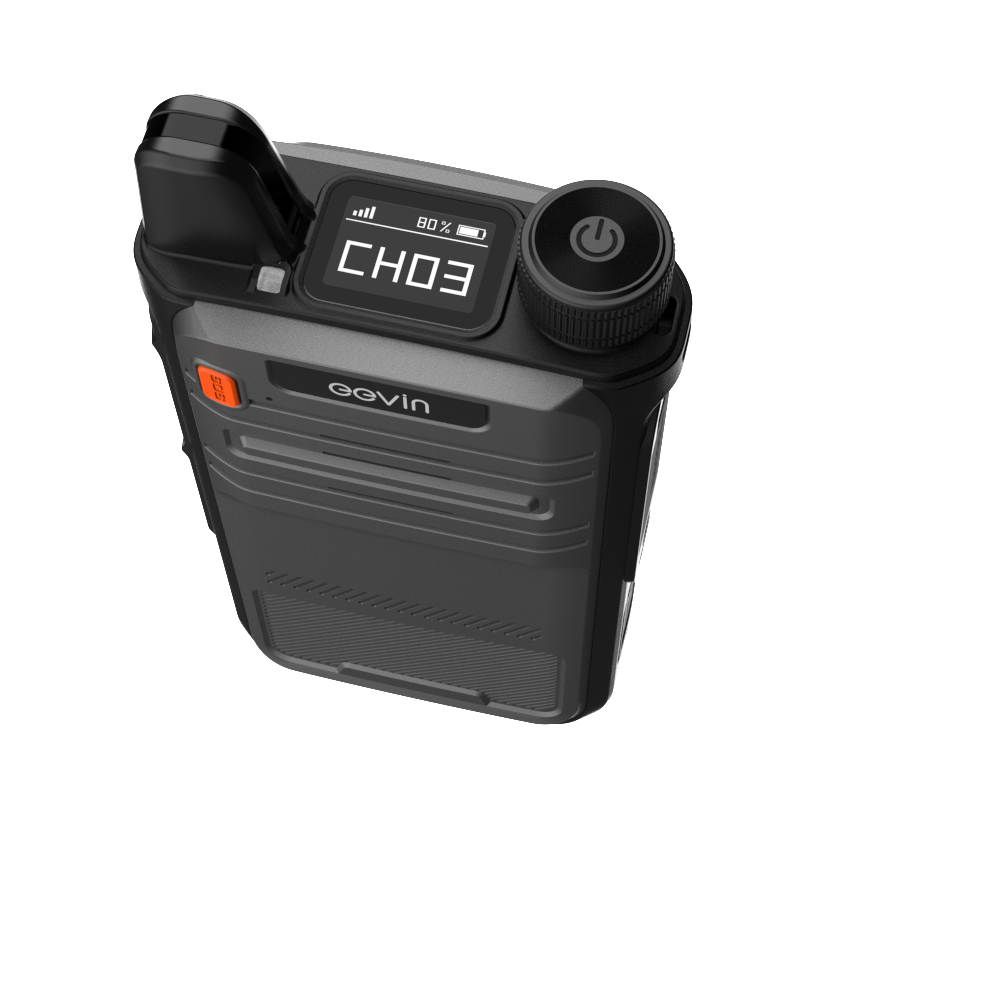

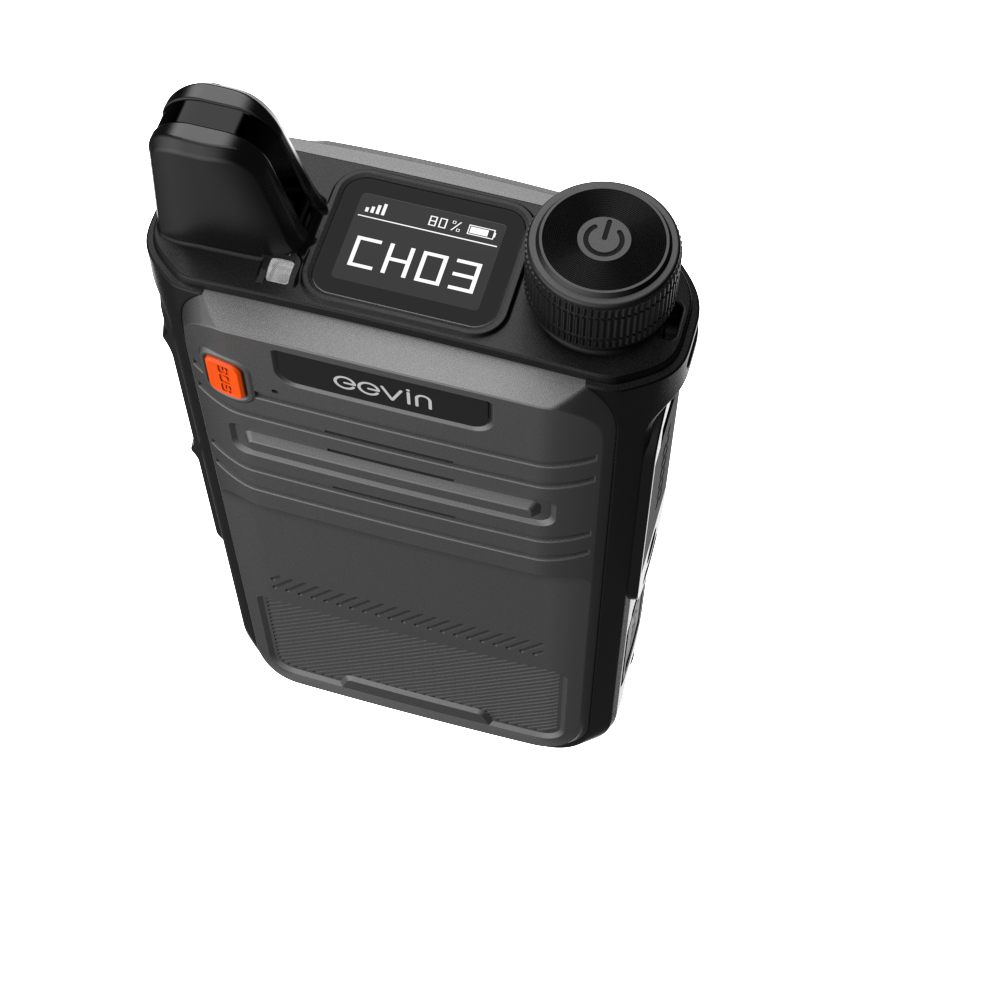

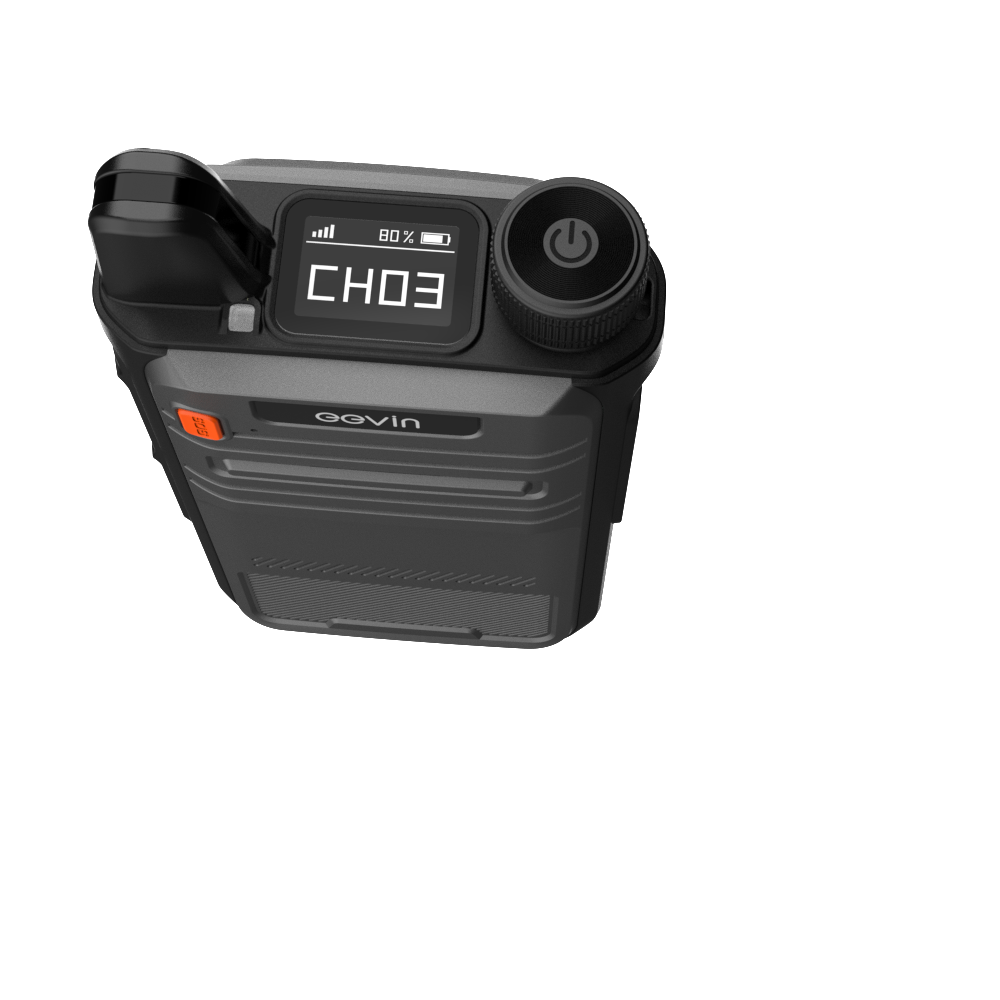

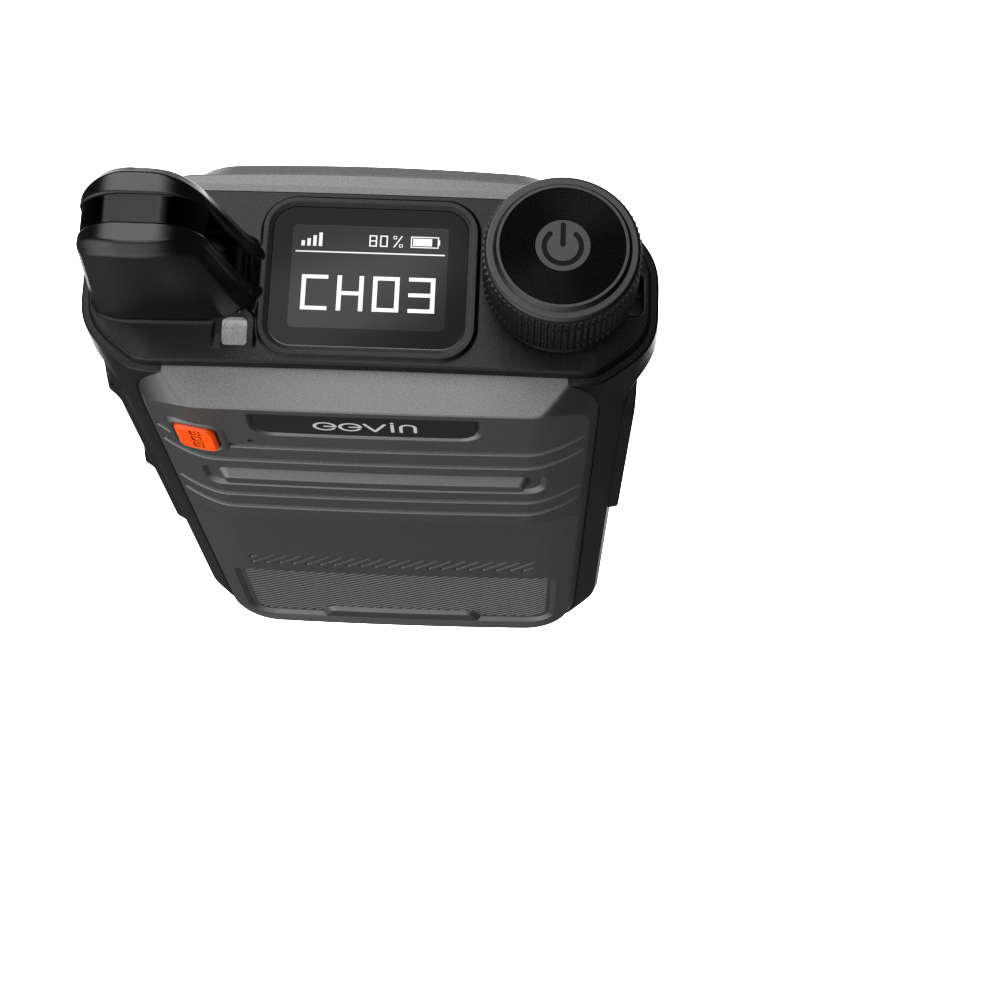

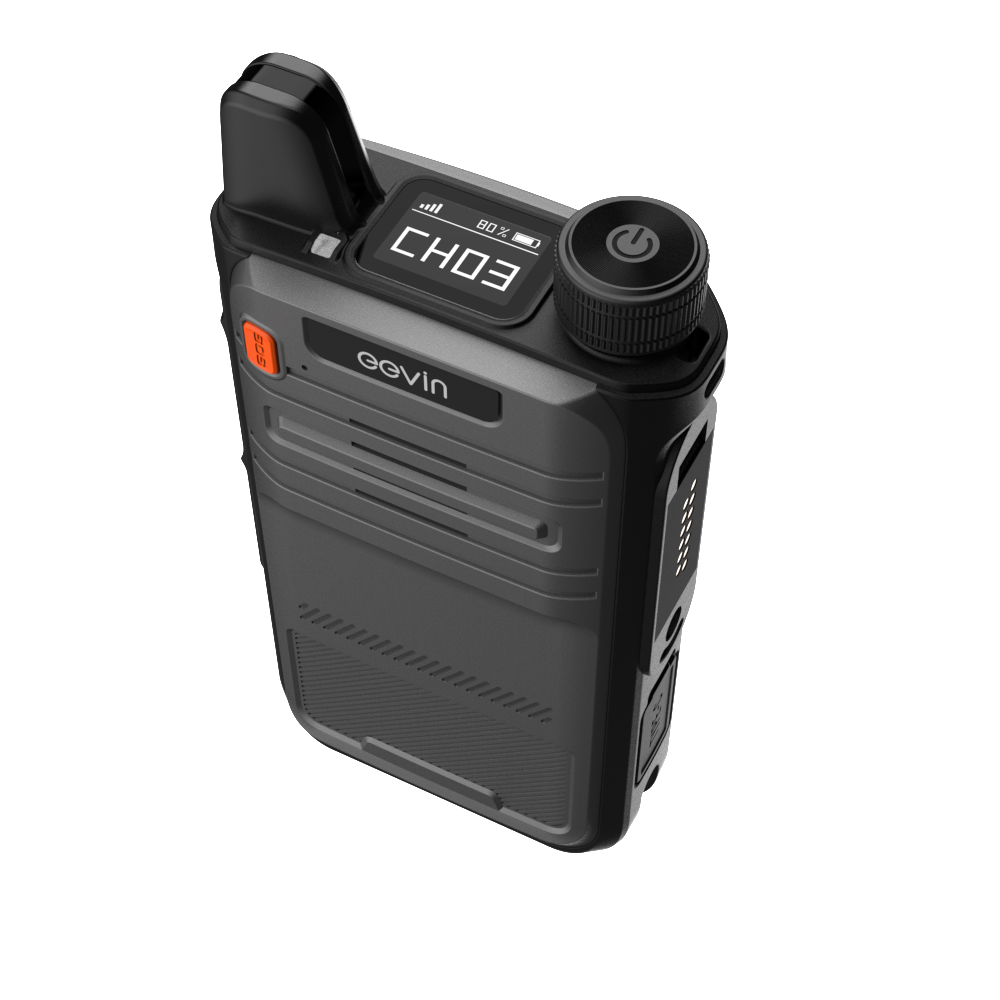

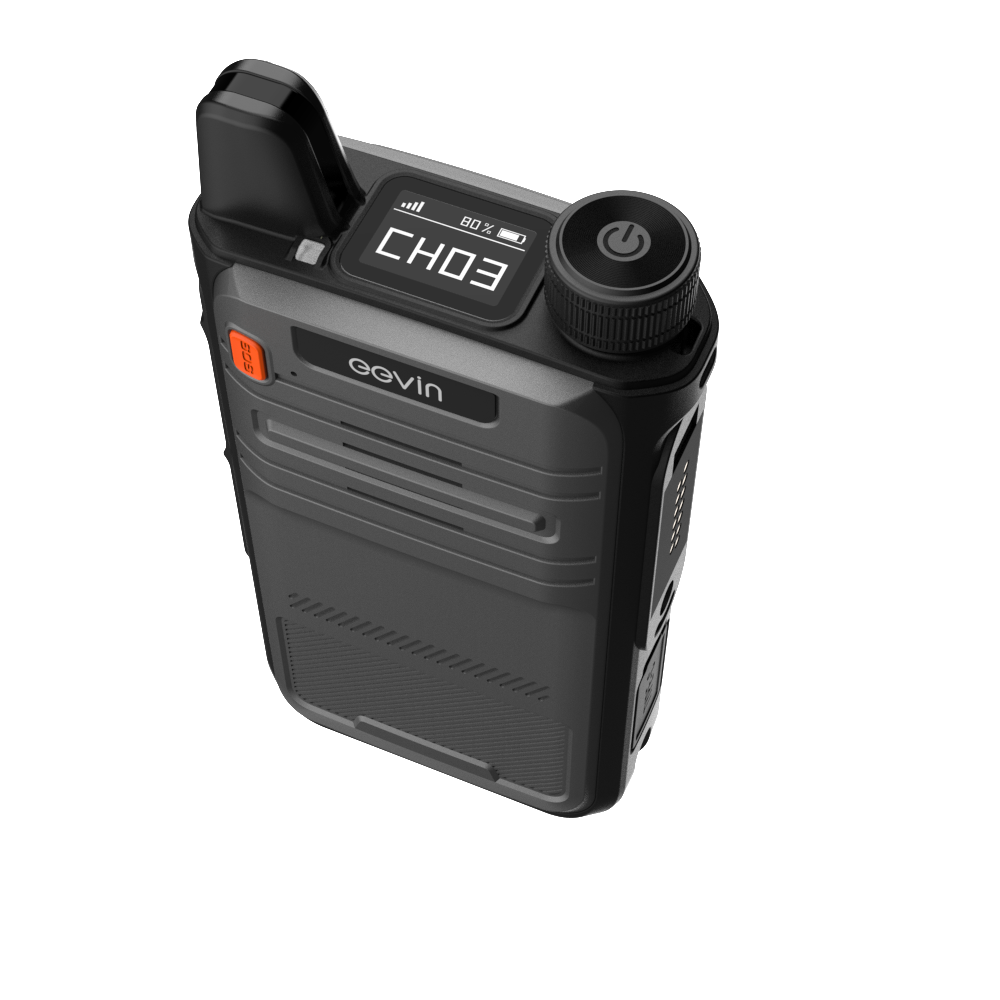

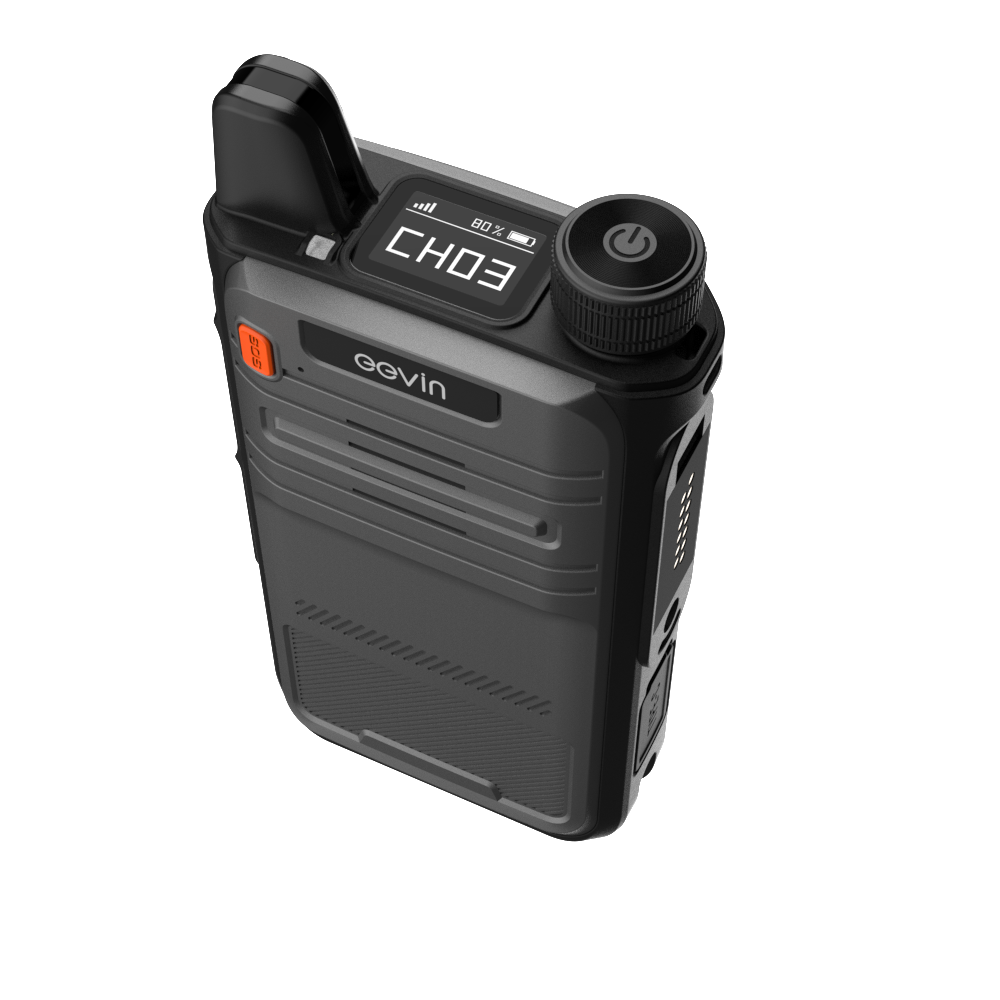

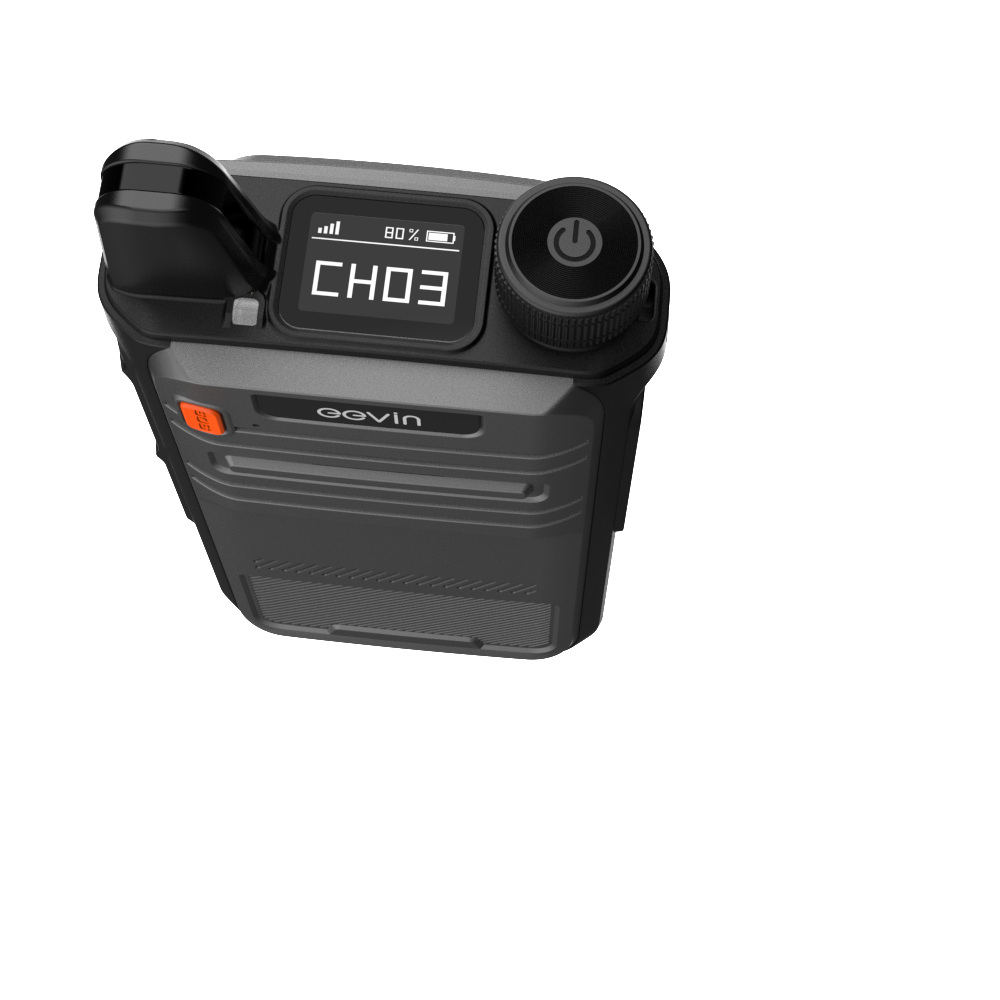

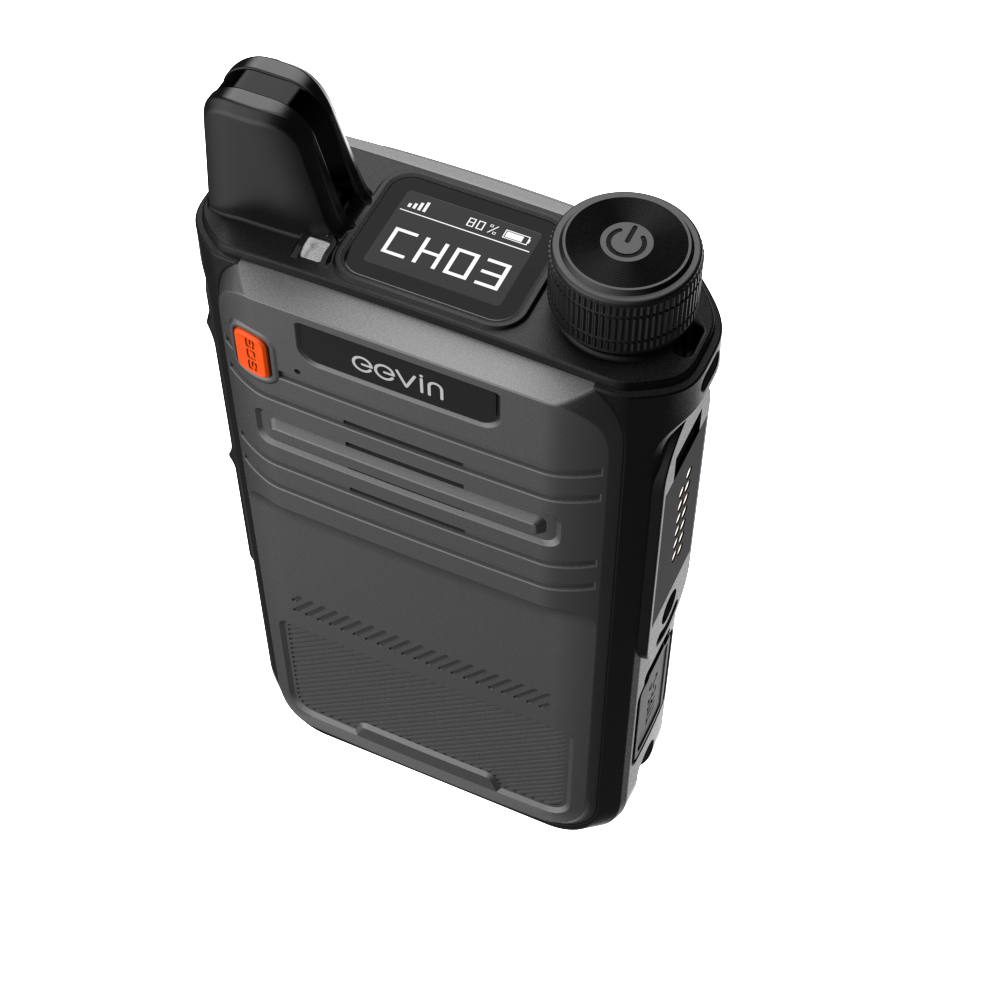

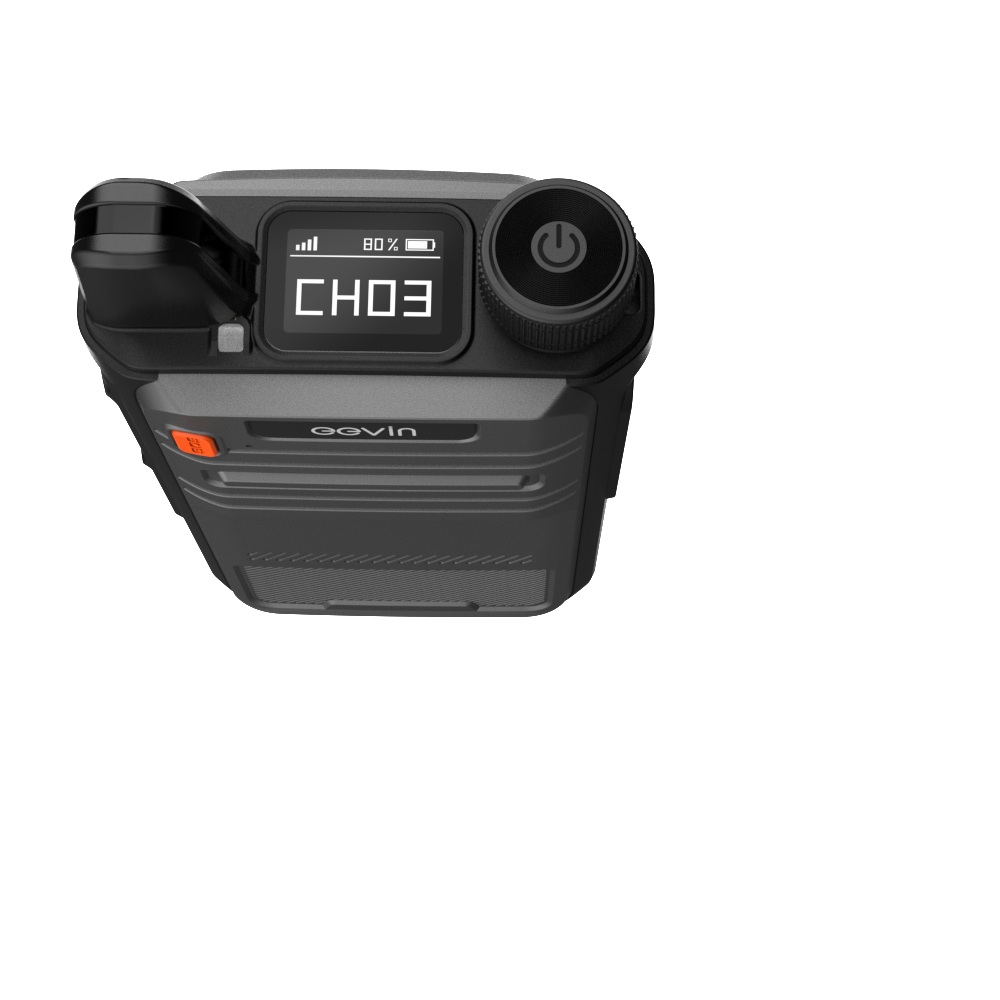

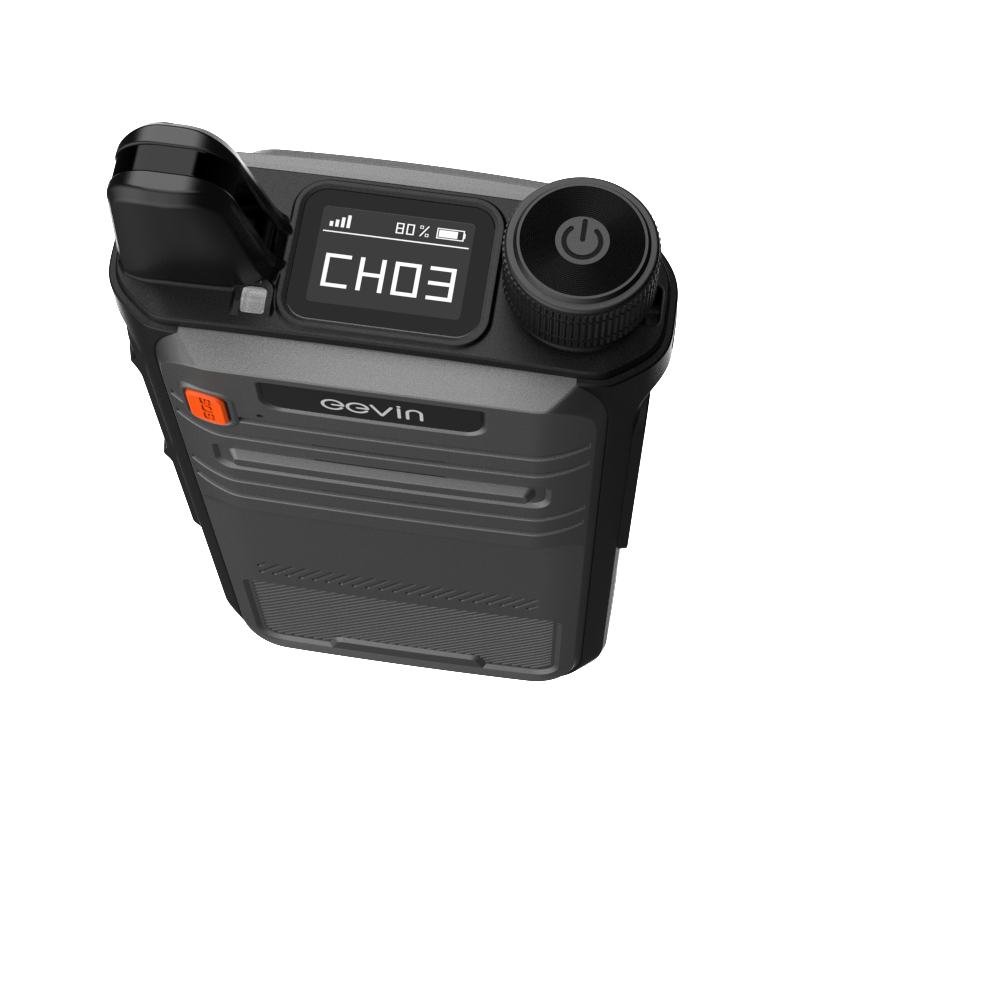

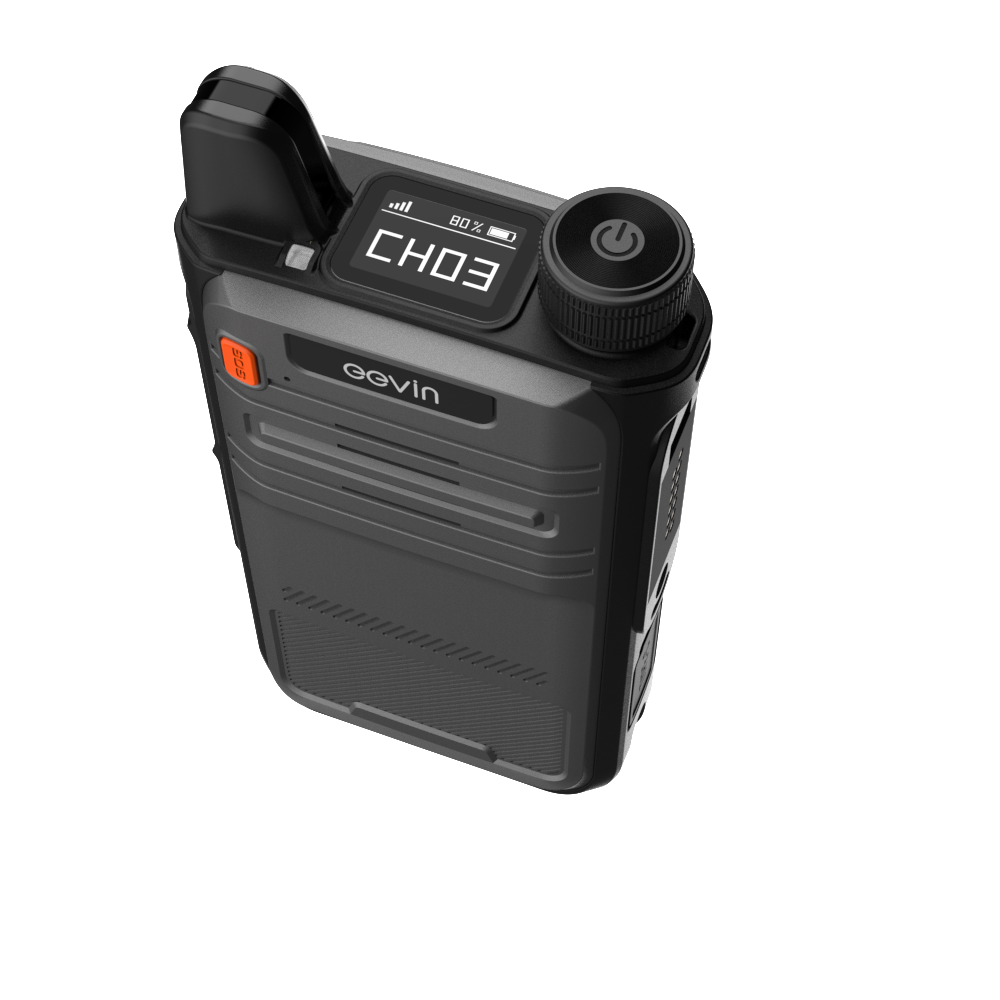

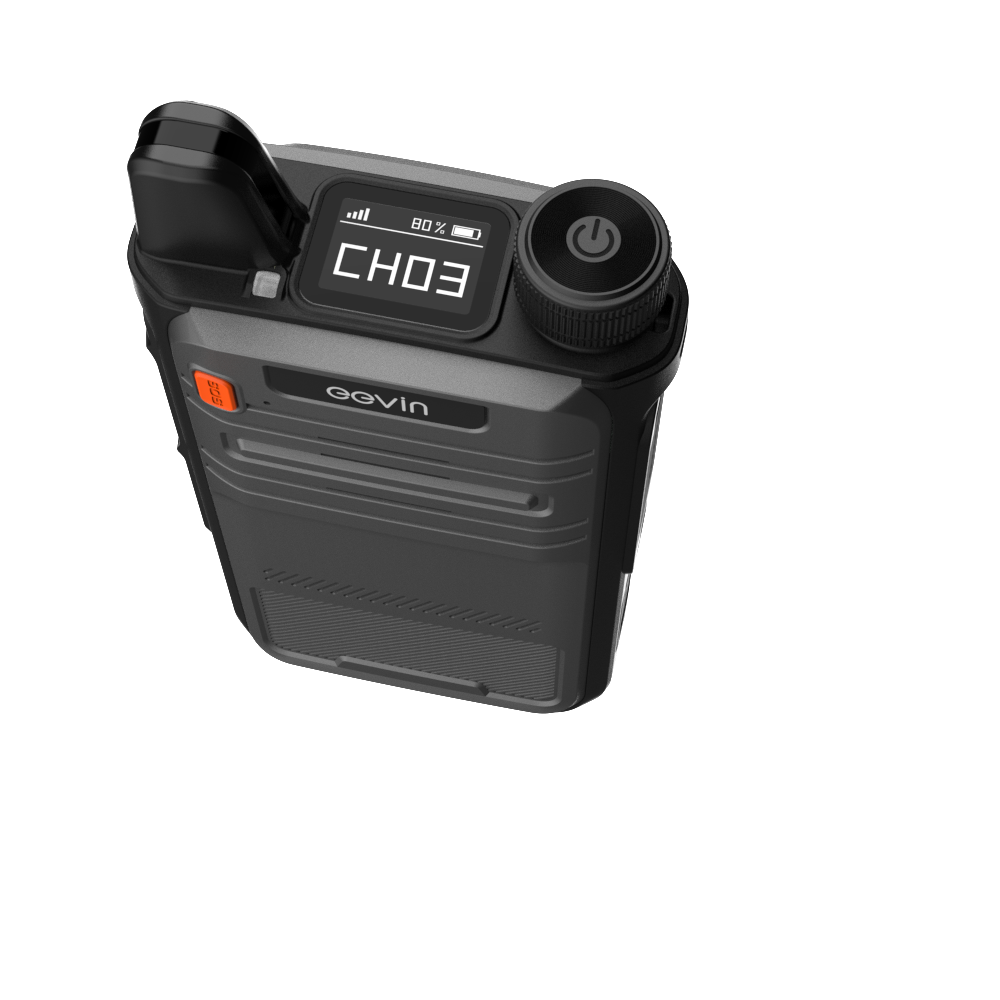

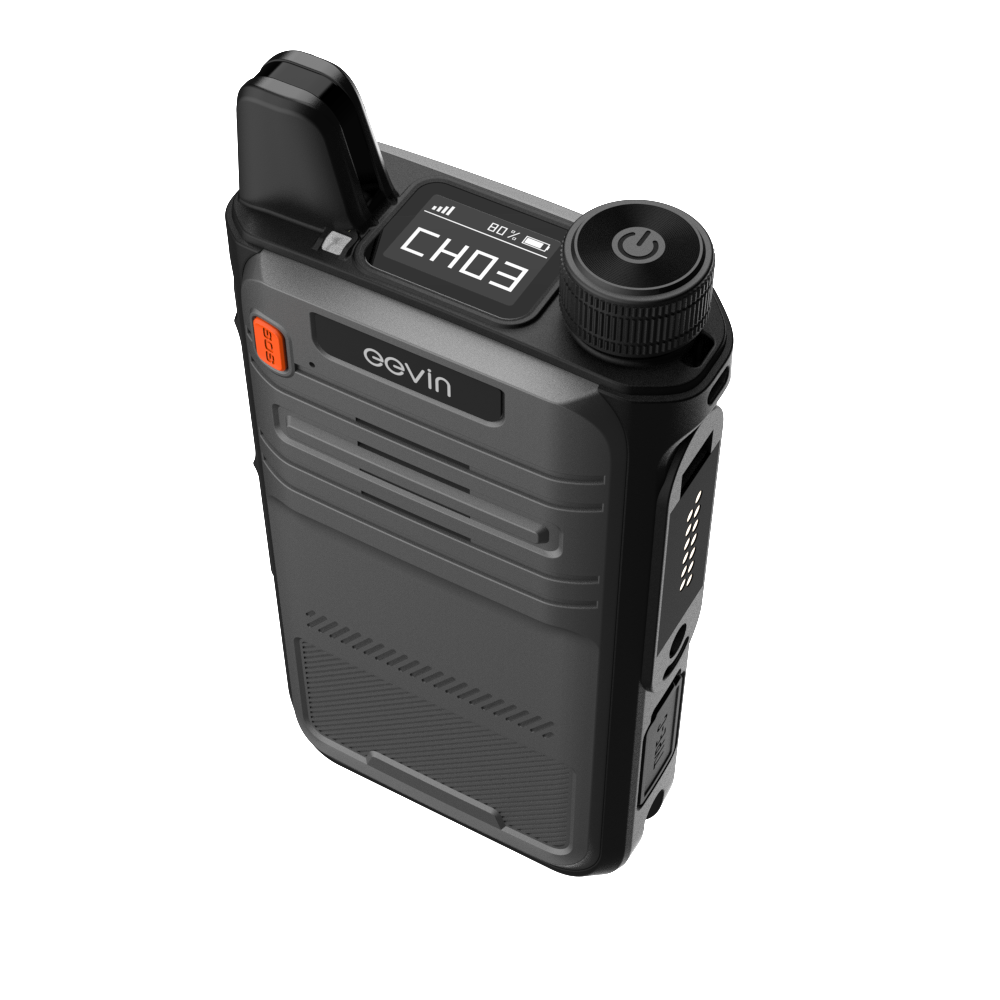

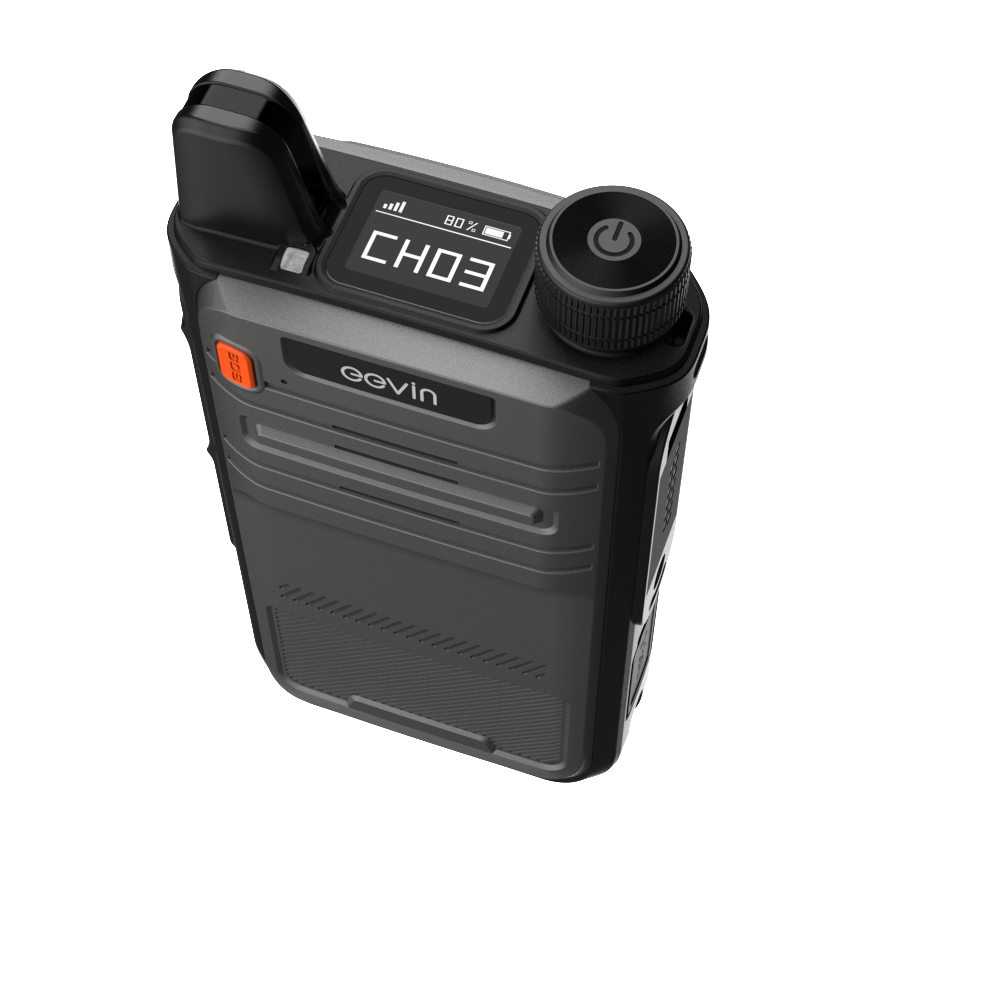

Top-screen Configuration
Quad-core processor, clocked at 1.5GHz,
equipped with Android 10.0 or above operating system,
customizable for third-party APPs.
3200mAh Lithium Polymer Battery,
Up to 20 hours of continuous operation
standby time of 260 hours.
| Dimensions/Size | 120.5*62*30.2mm |
|---|---|
| Battery capacity | 3200mAh polymer lithium battery. |
| Communication network | 3G:WCDMA:B1/B2/B5/B8 TD-SDMA:B34/B39 4G:LTE-DD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28A&B LTE-TDD:B34/B38/B39/B40/B41 |
| Chip and system | Quad-core processor, 1.5GHz clock speed, equipped with Android 10.0. |

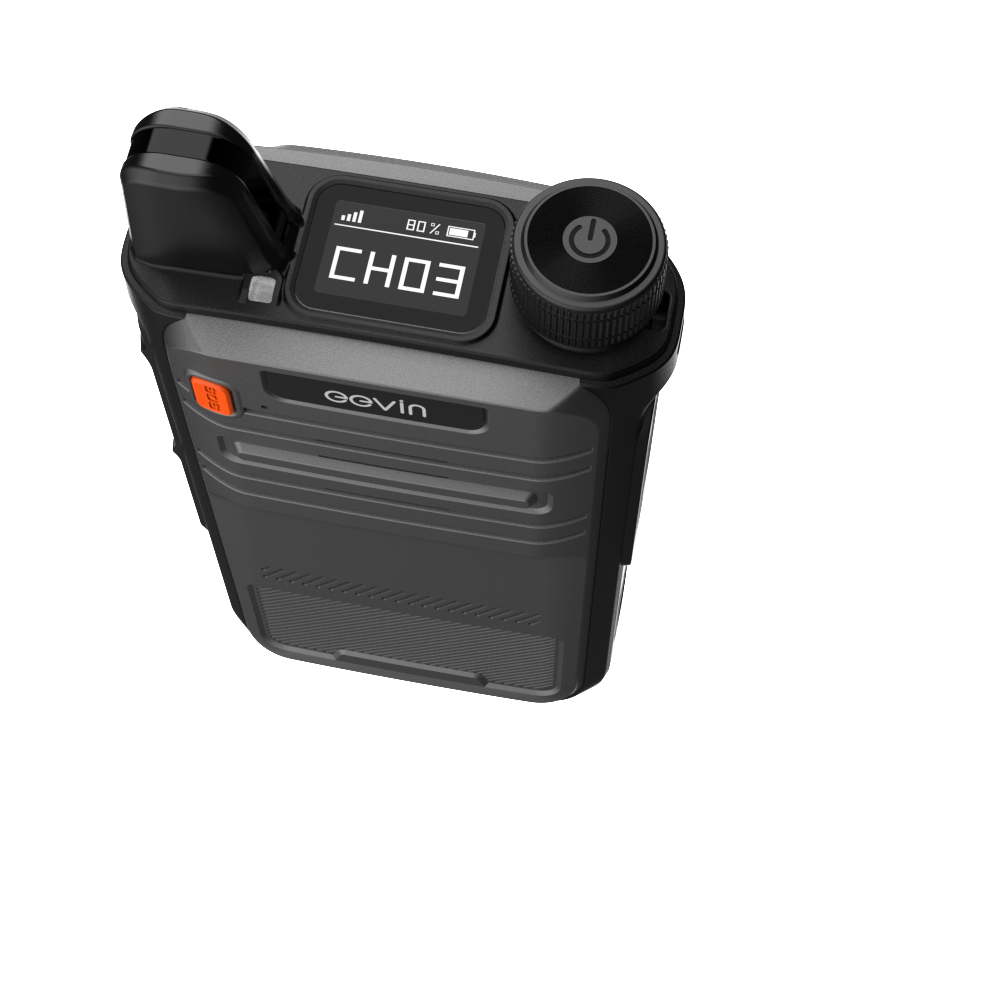

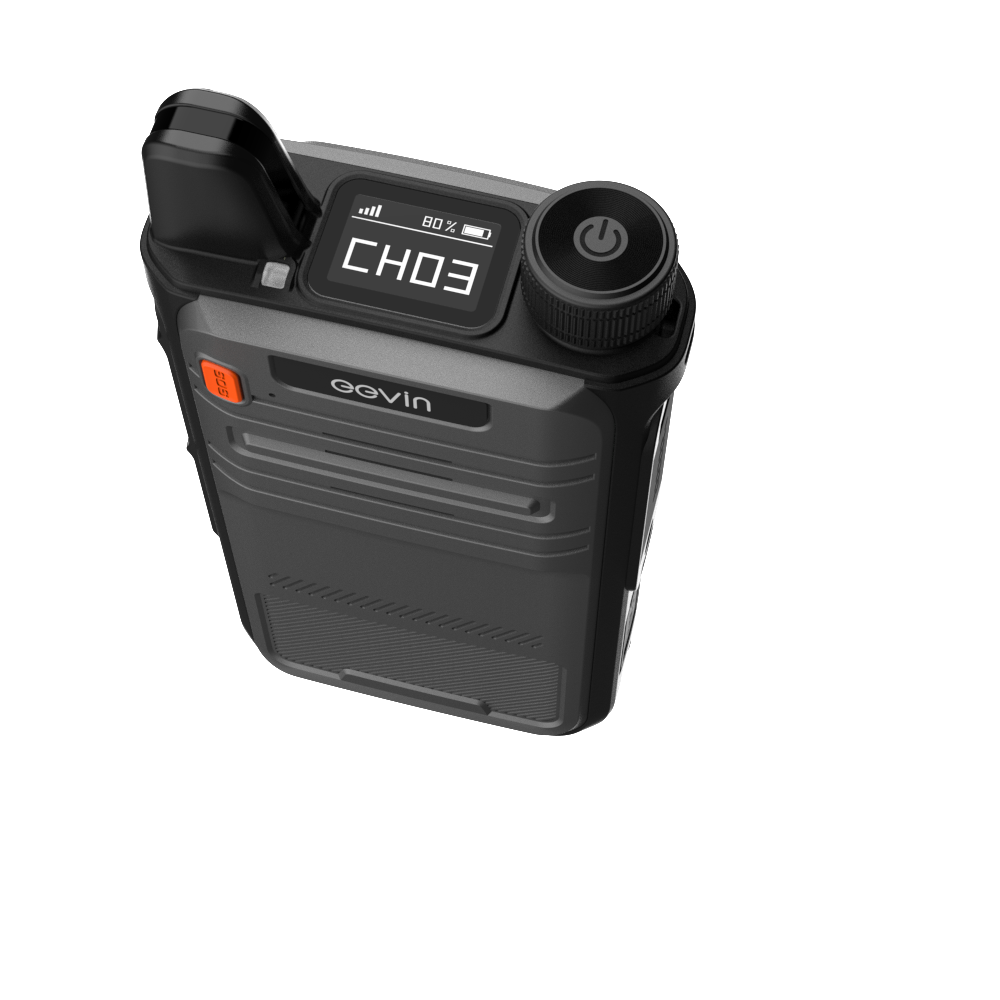

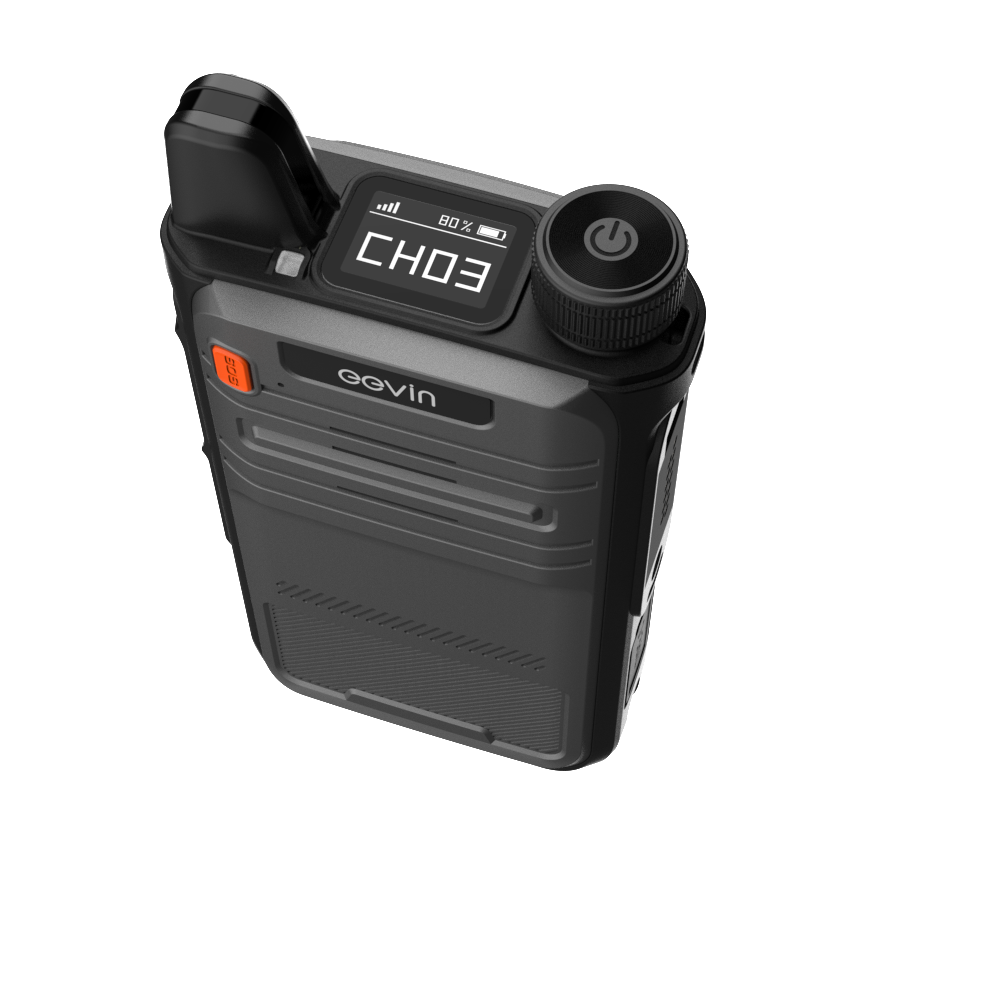

| Display screen | Equipped with a 0.73-inch OLED secondary screen on the top. |
| Intercom performance | 1W，Support MAX to 3W, Add noise-reduction IC |
| Localization function/Positioning capability | GPS/AGPS/GLONASS/BeiDou |

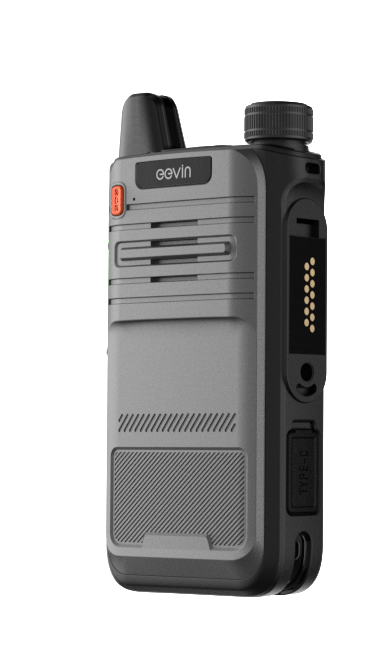

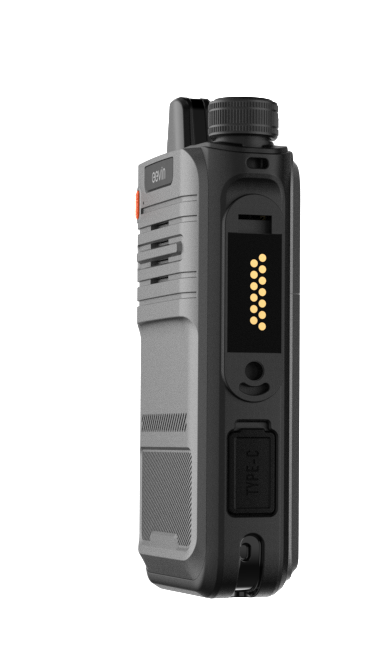

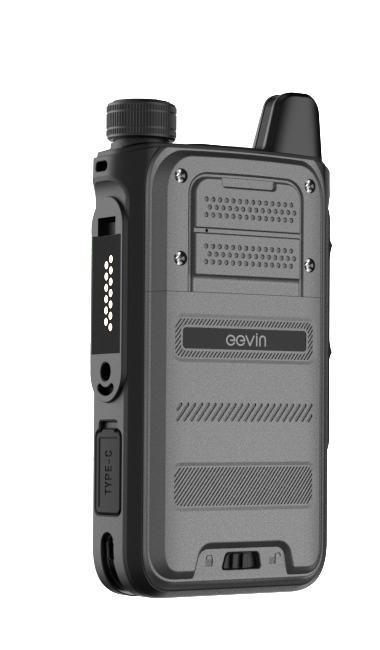

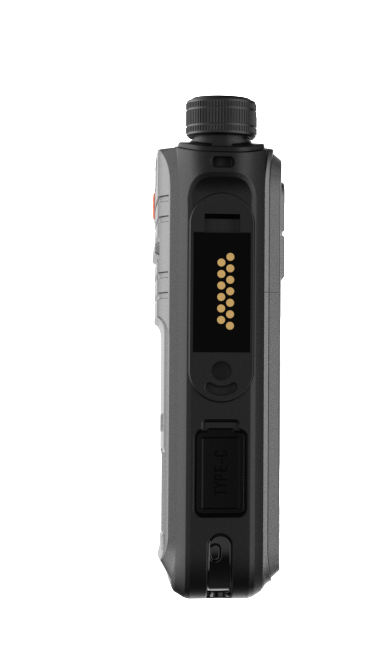

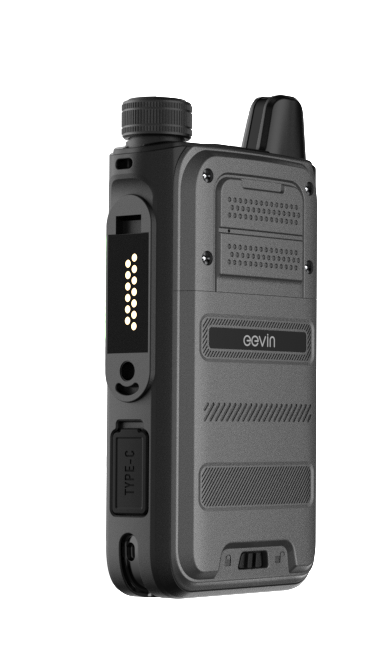

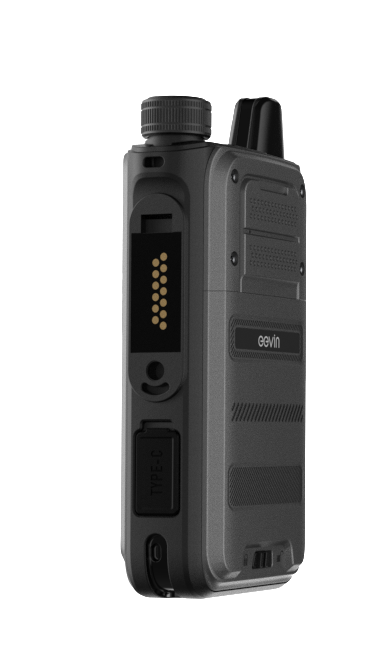

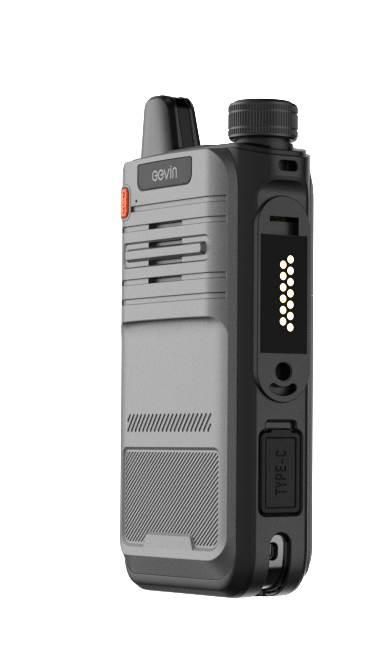

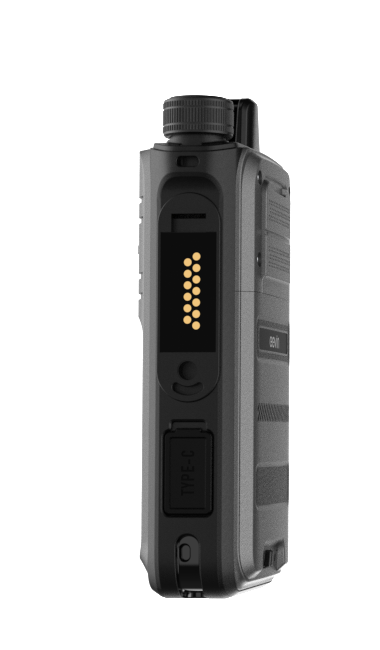

| Expansion interface | Supports TYPE-C and M6 standard interfaces (13pin) |
| Protection performance | IP67 |
| Special accessories | Dual card slot charger |
| Dispatching function | Features include group intercom, audio and video evidence collection, visual dispatching, and intelligent inspection. |
| Member Information | |
|---|---|
| Address Book |
|
| Personnel Status and Location Information |
|
| Device Status |
|
| Voice Dispatch | |
| Group Call |
|
| Private Call |
|
| Temporary Group Call |
|
| Network Adaptive Function |
|
| Secure Encryption |
|
| One-Button Alarm |
|
| IP Two-Way Voice Call | ? |
| IP Two-Way Video Call | ? |
| IP Voice Conference | ? |
| Call Command Center | ? |
| Video Dispatch | |
| Video Push and Pull | ? |
| Simultaneous Voice Intercom during Video Push and Pull | ? |
| Network Adaptive Jitter | ? |
| Video Recording Storage | ? |
| Recording Playback | ? |
| GIS Map Dispatch | |
| Display of Terminal Online and Offline Status |
|
| Terminal Positioning Supporting Pure GPS and Hybrid Positioning Simultaneously |
|
| GIS Map Monitoring | ? |
| Real-Time Positioning and Tracking | ? |
| Historical Trajectory Playback | ? |
| Multimedia Messaging | |
| Intra-group Multimedia Messages | ? |
| Image, Voice, and Video Sending | ? |
| Image and Video Capture and Transmission | ? |
| Broadcast Messages | ? |
| Dispatch Console Information Query and Preview | ? |
| Task Management | |
| Task Assignment | ? |
| Task Feedback and Completion | ? |
| Task Inspection and Verification | ? |
| Workflow Applications | |
| Attendance Check-In and Check-Out | ? |
