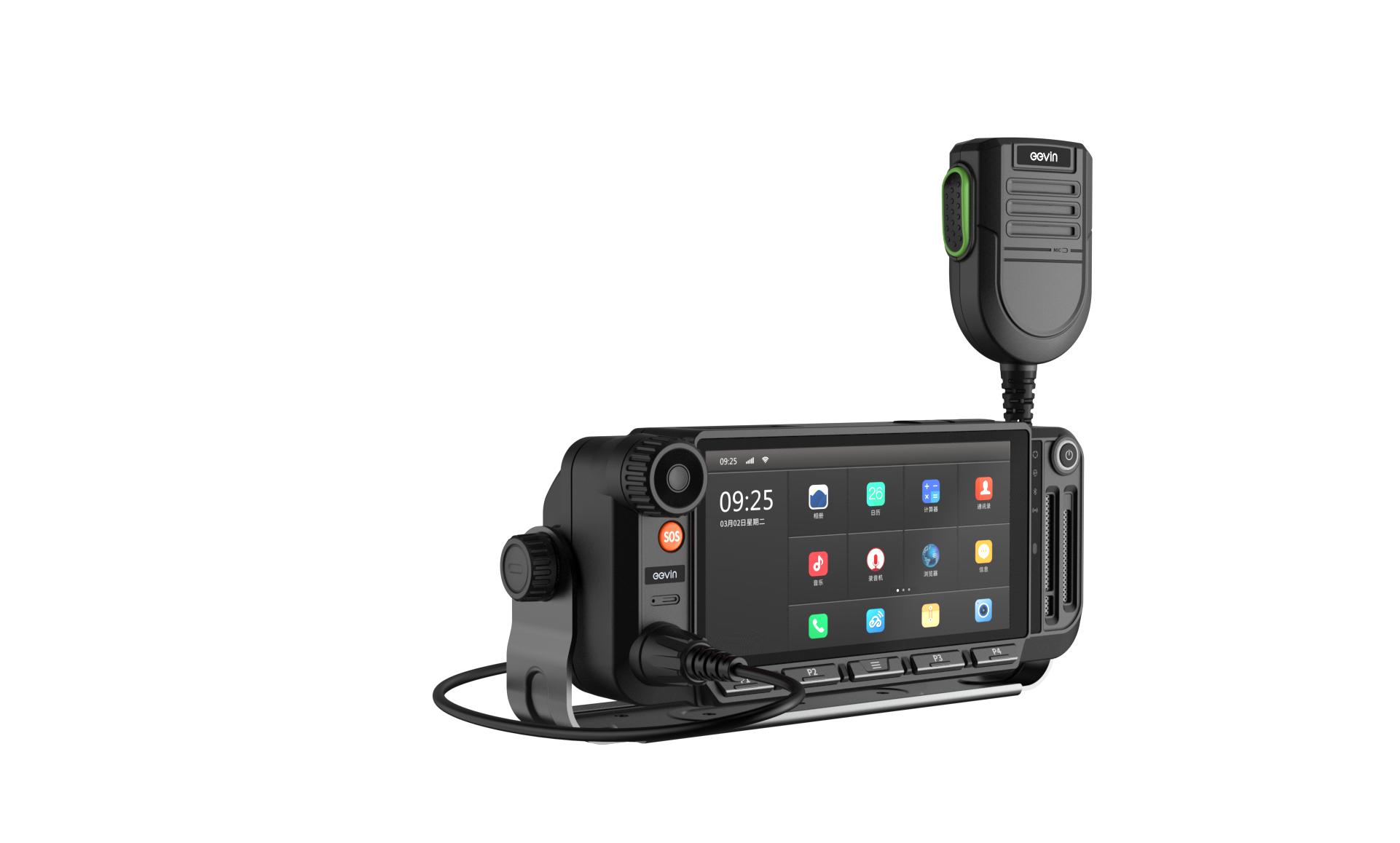

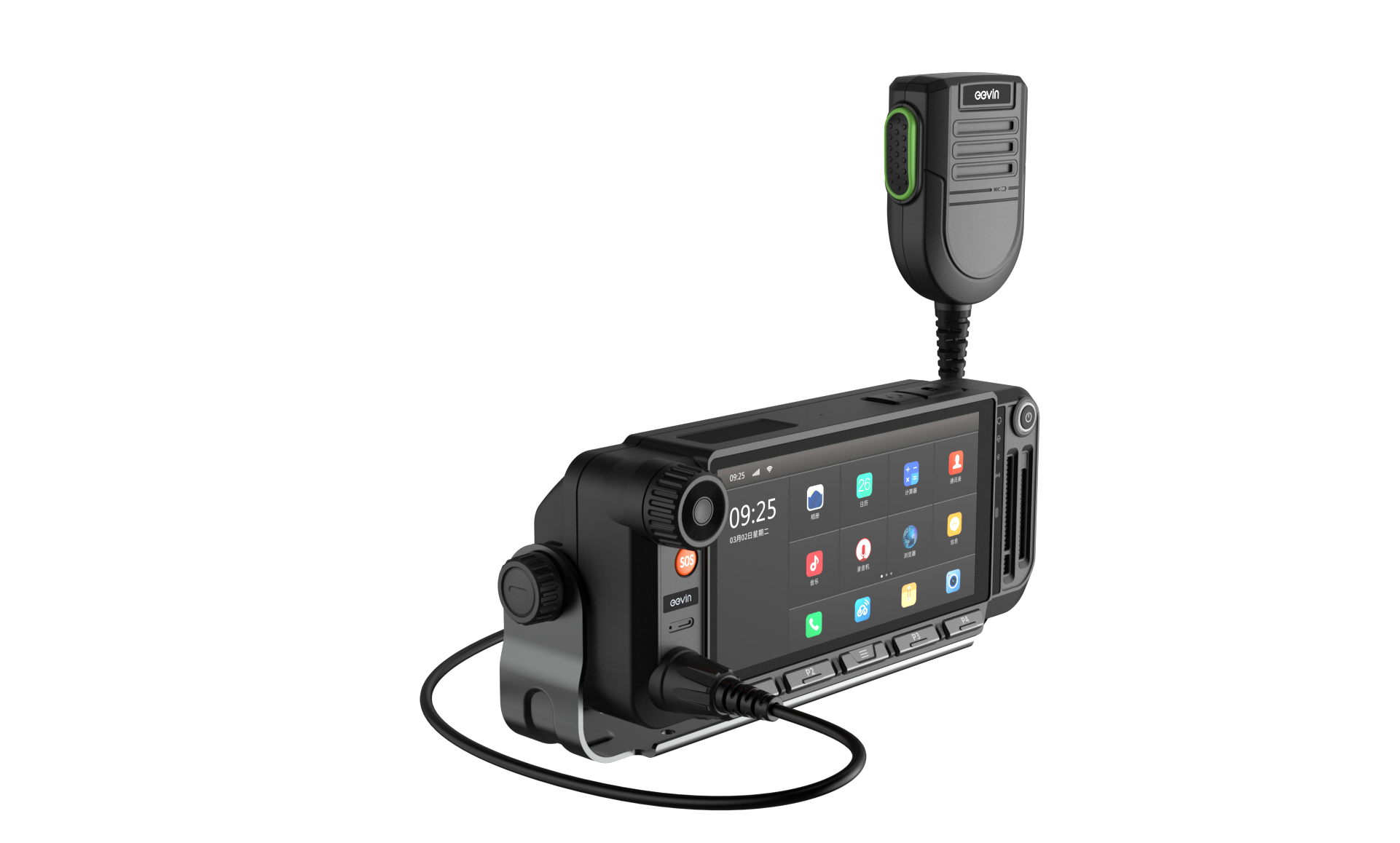

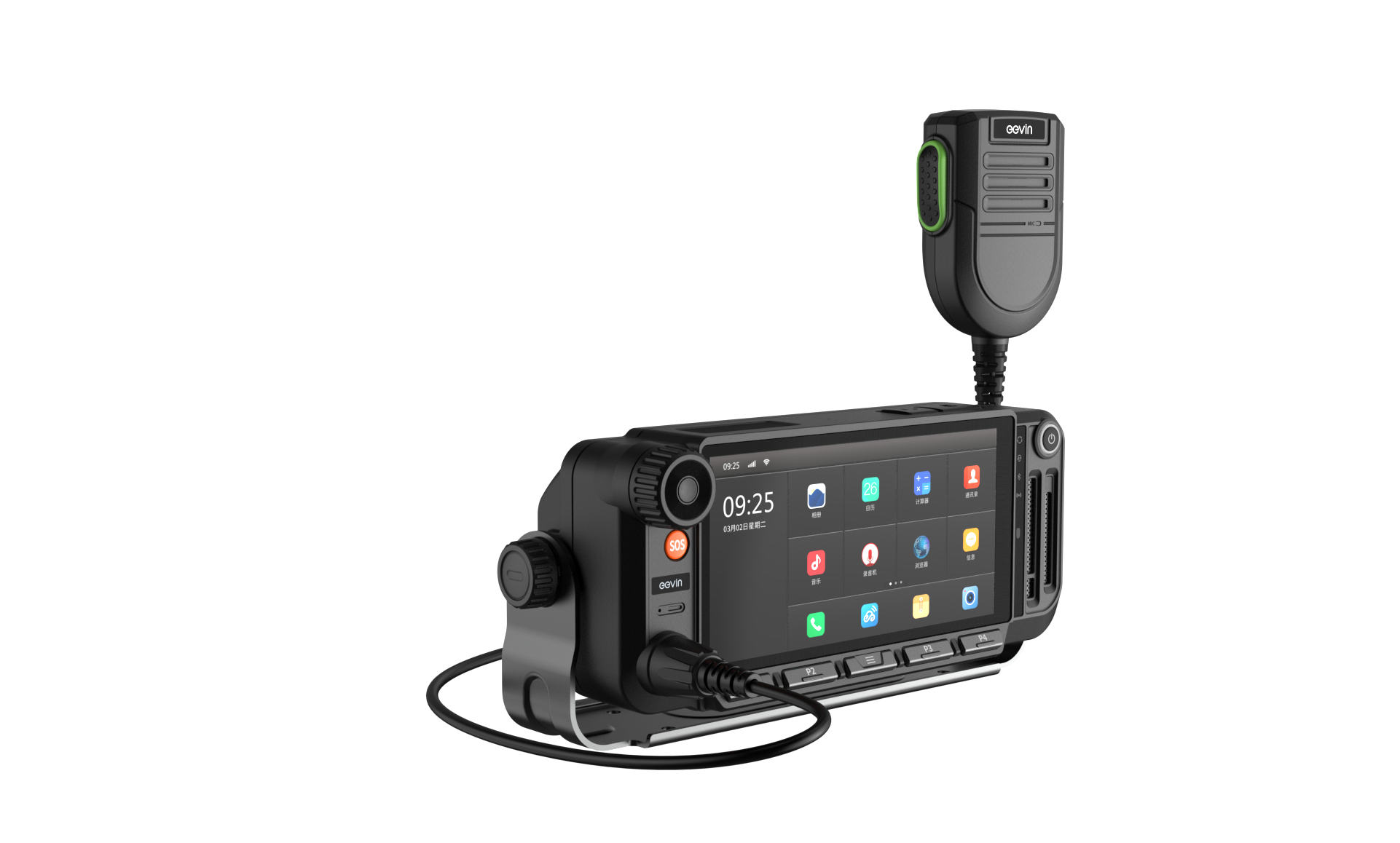

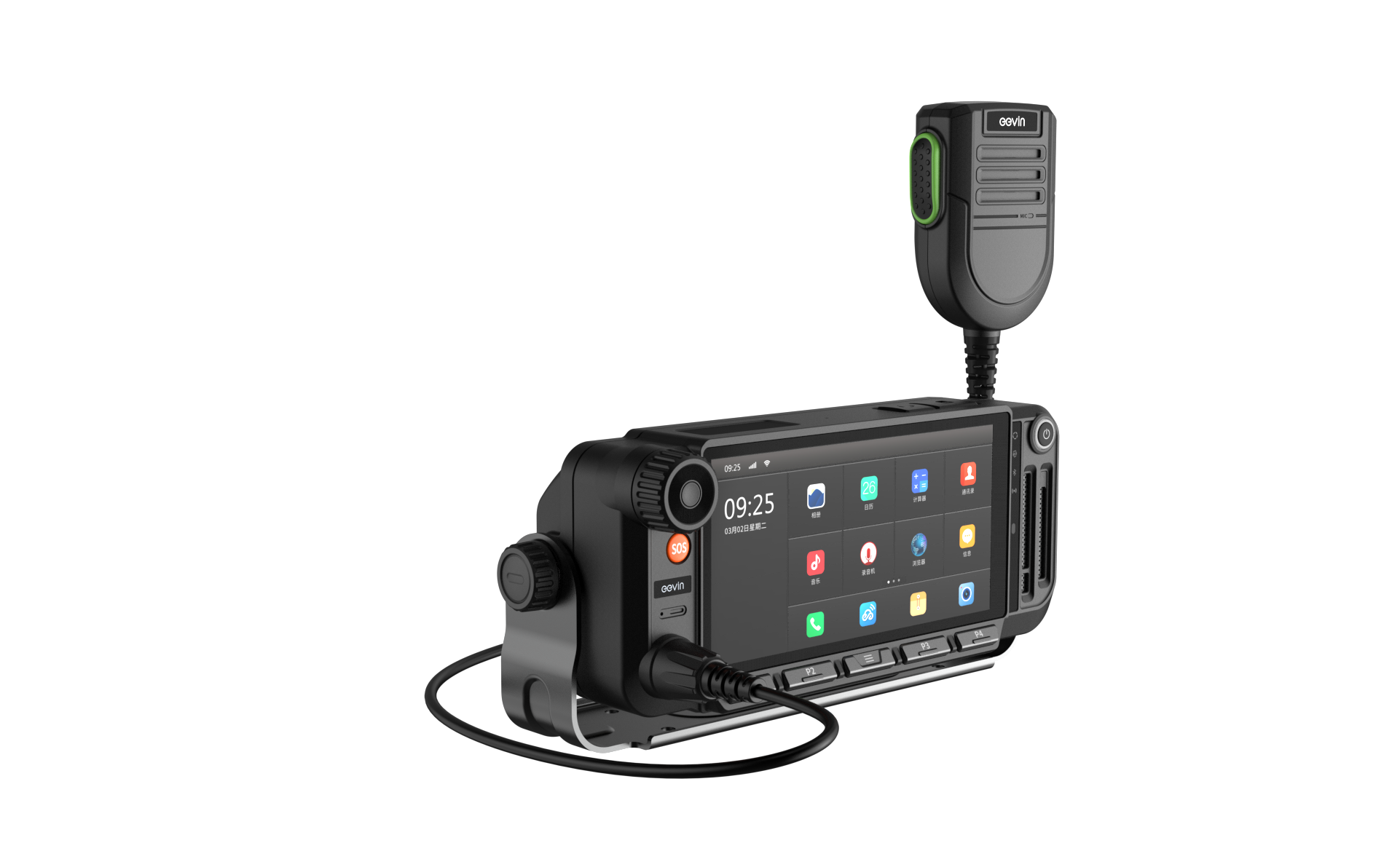

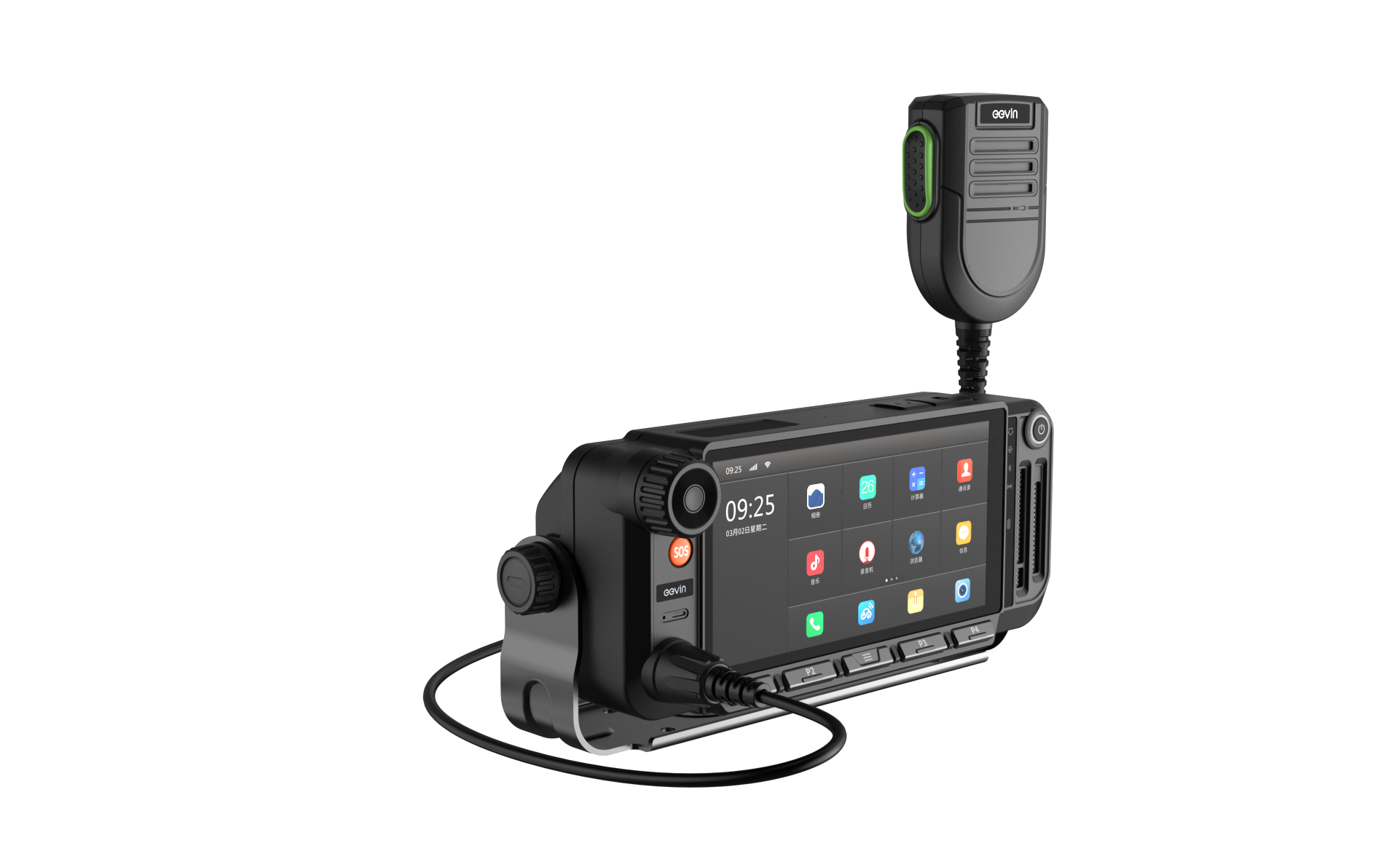

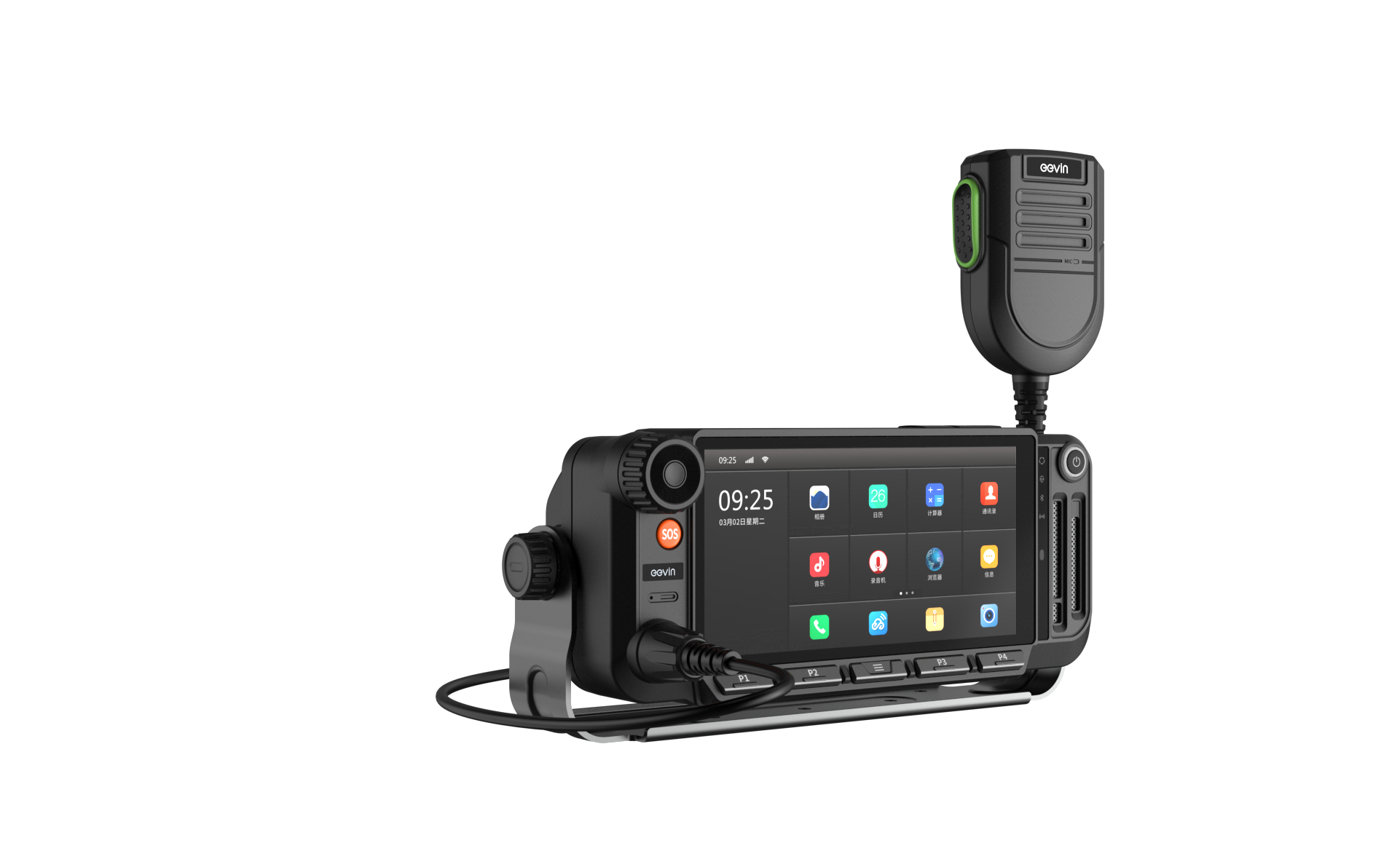

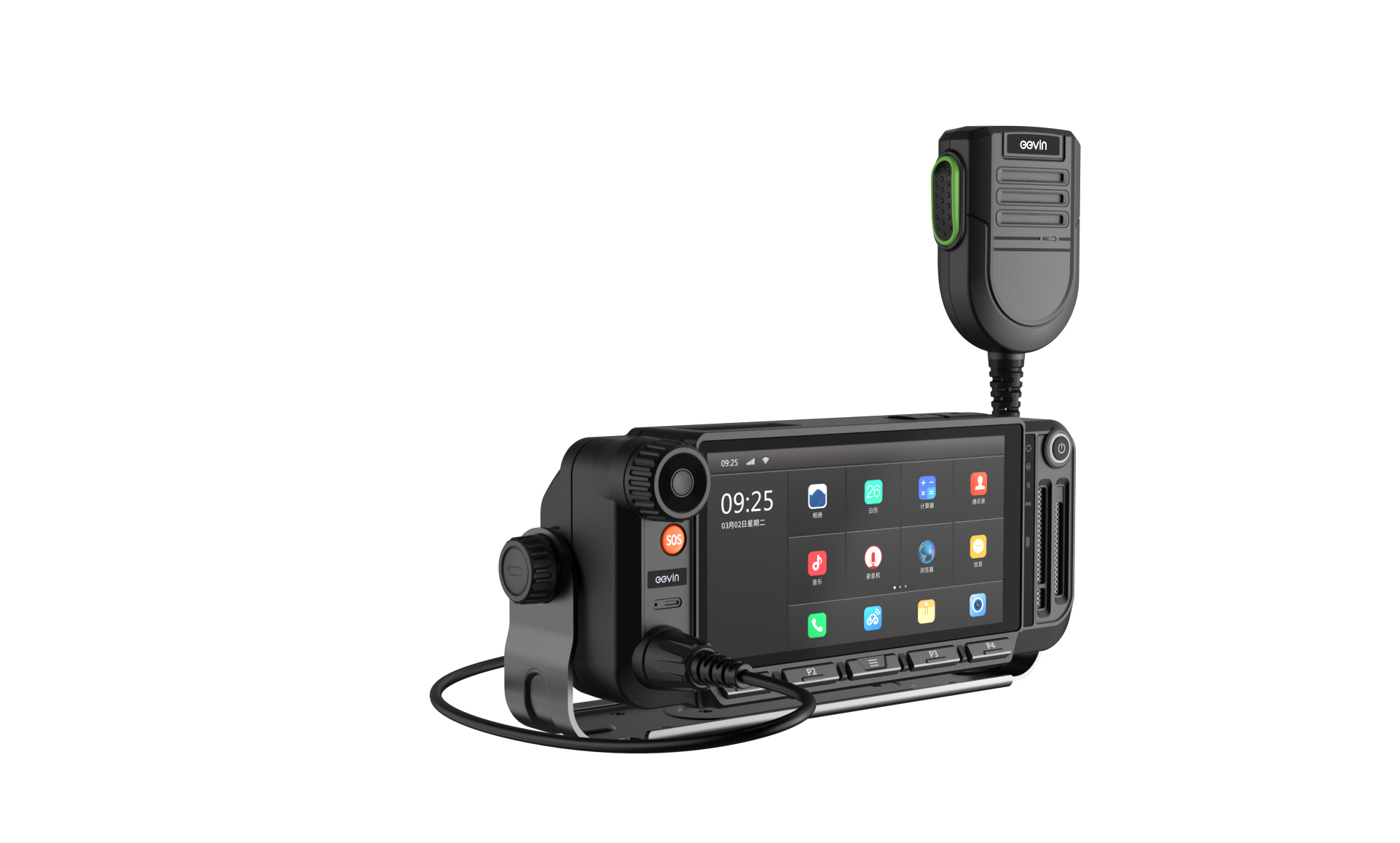

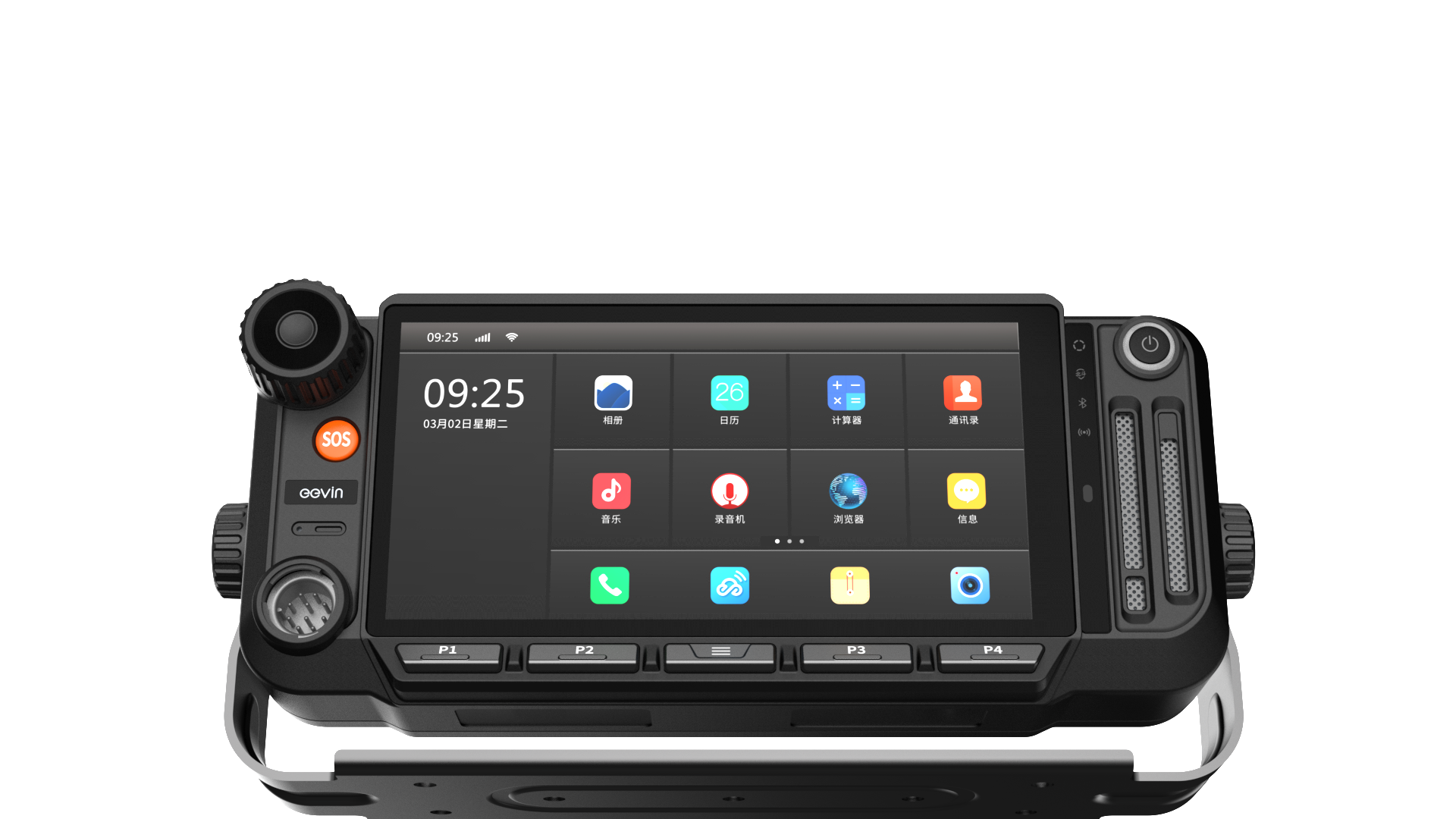

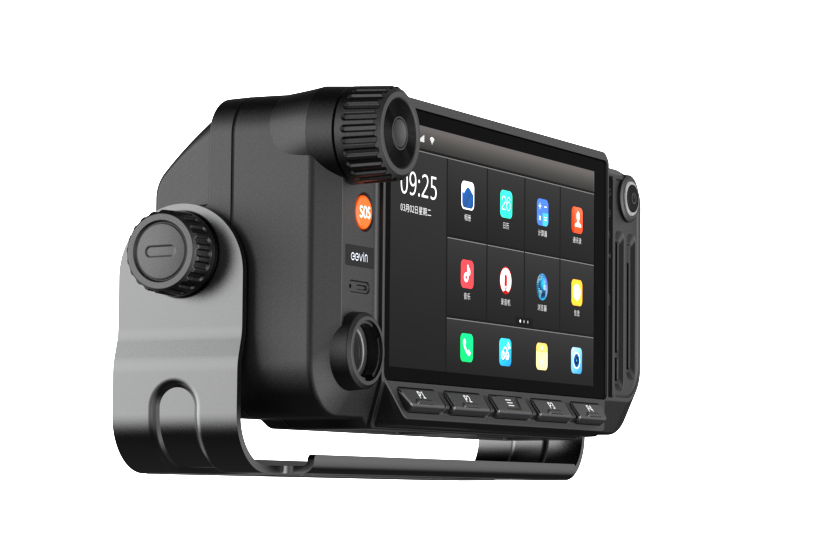

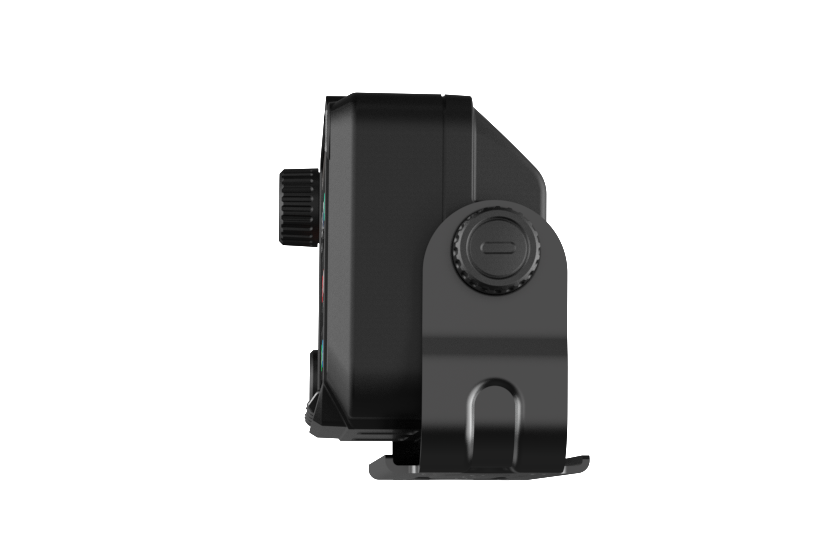

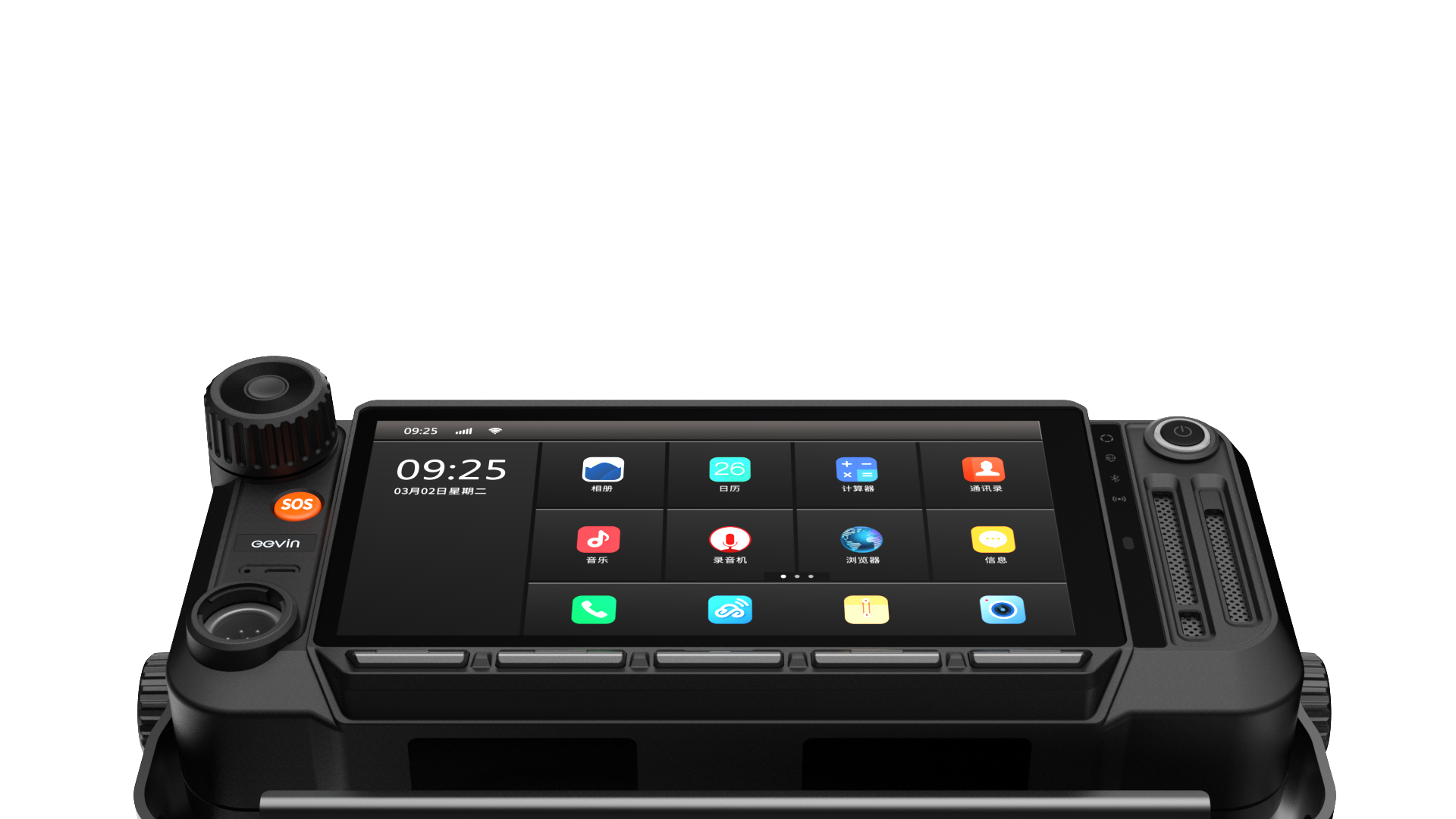

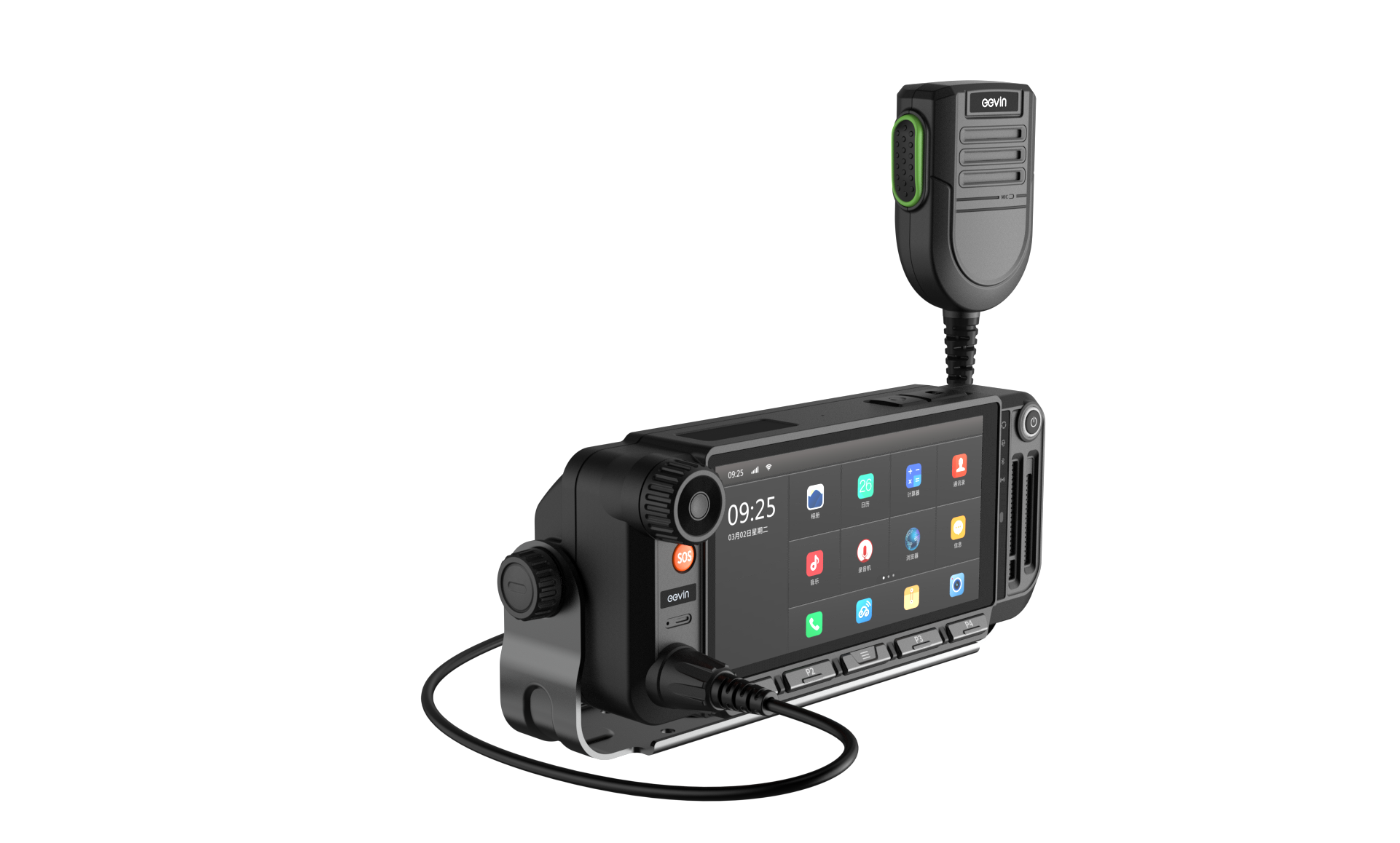

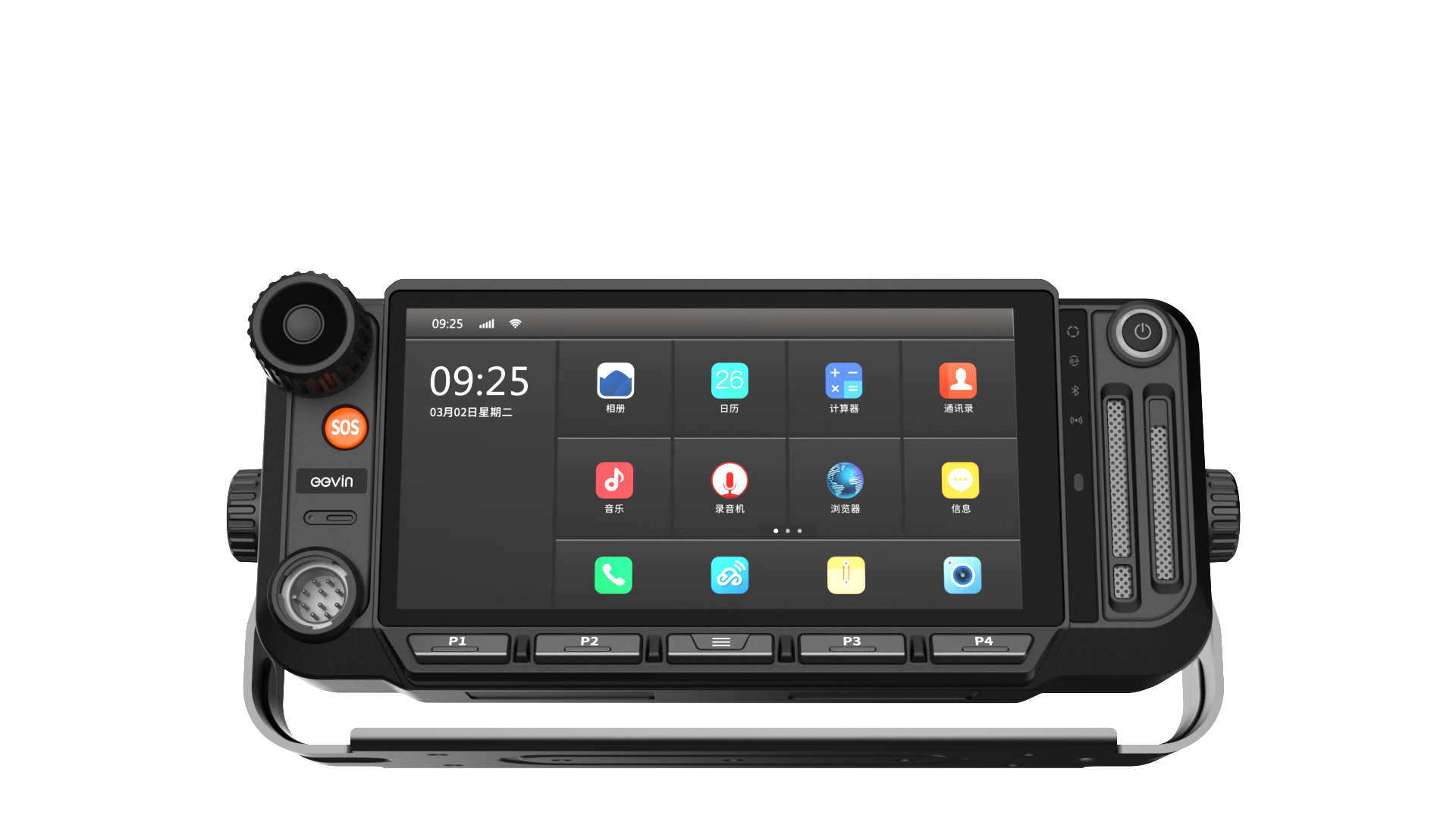

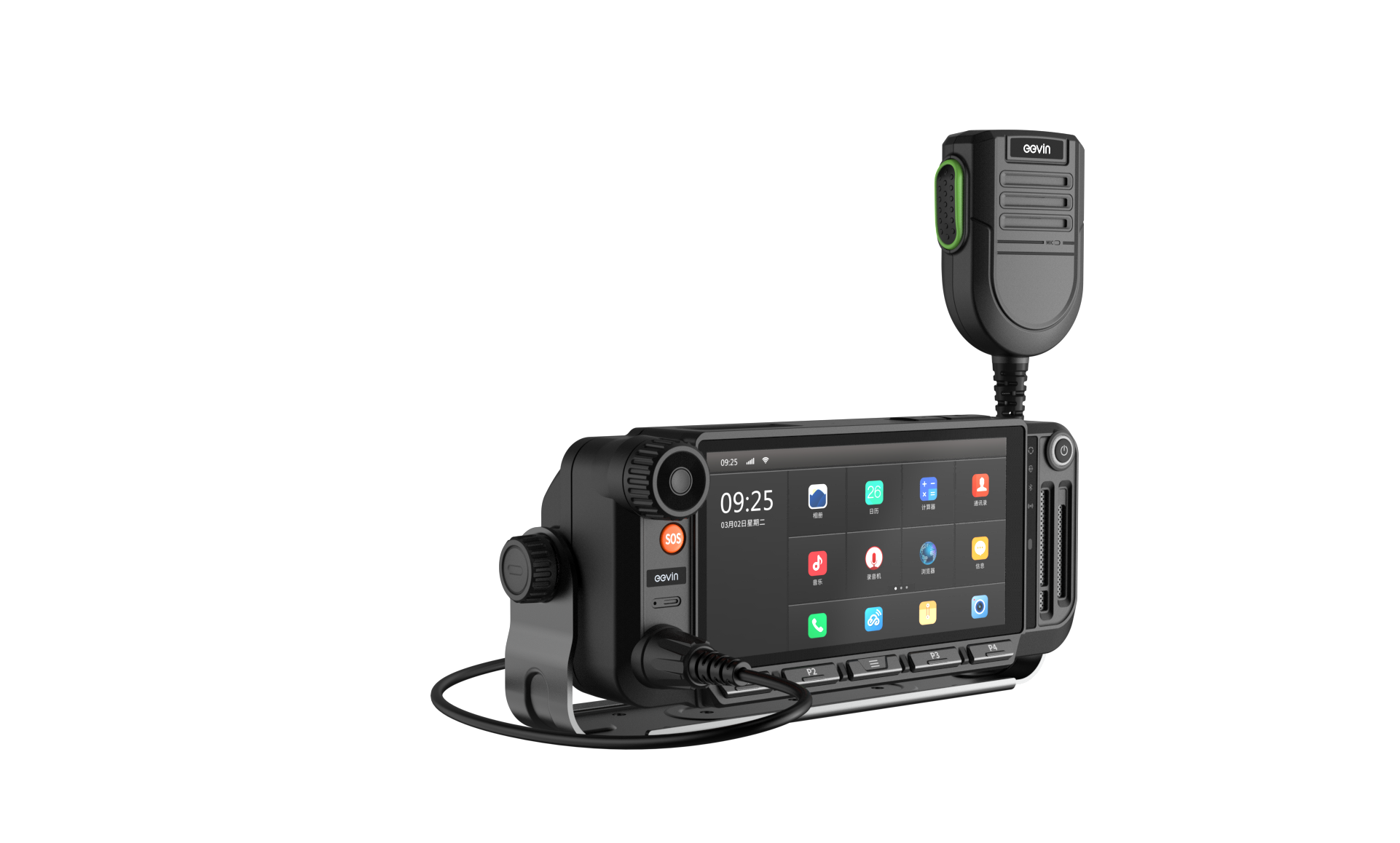

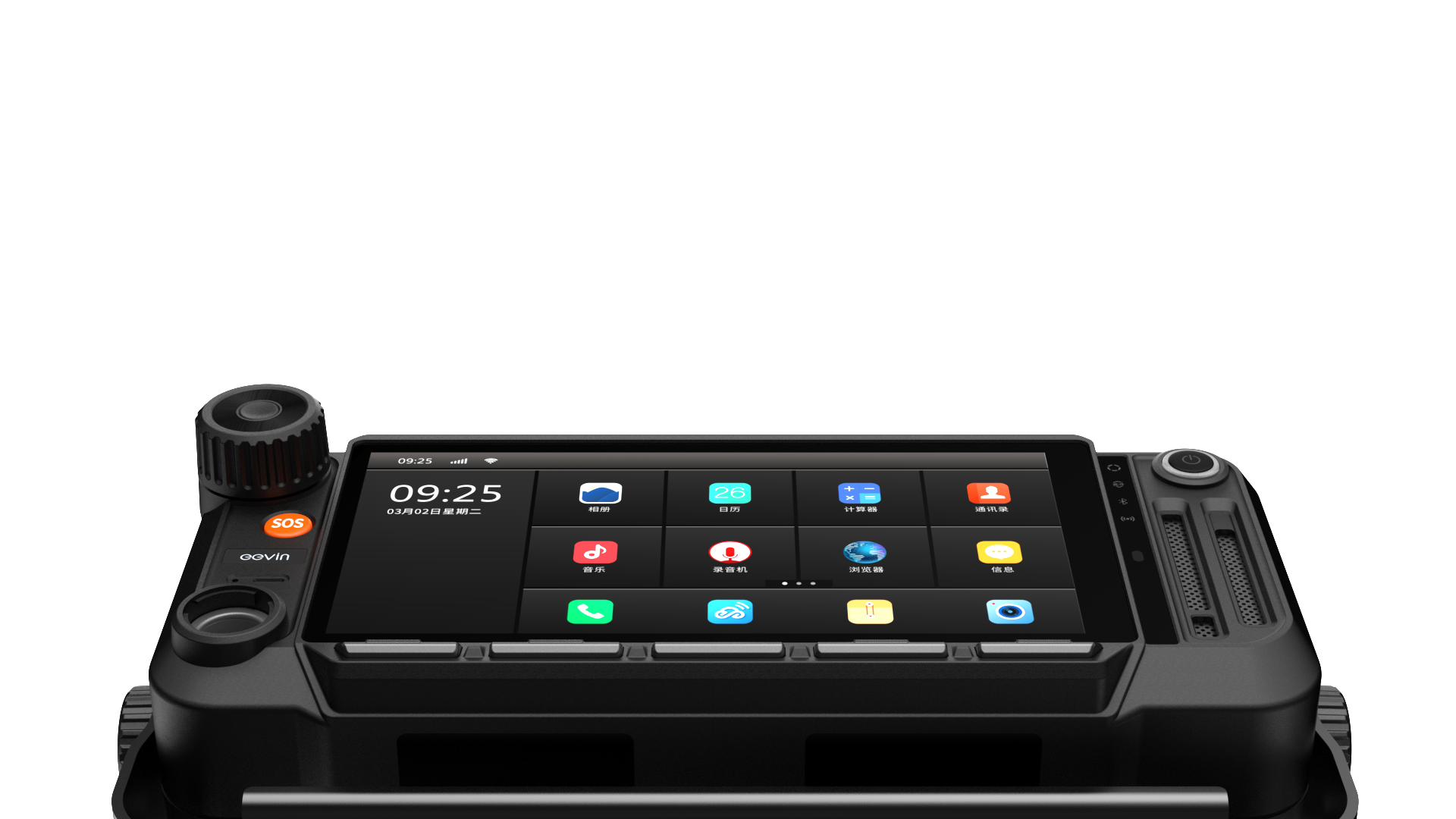

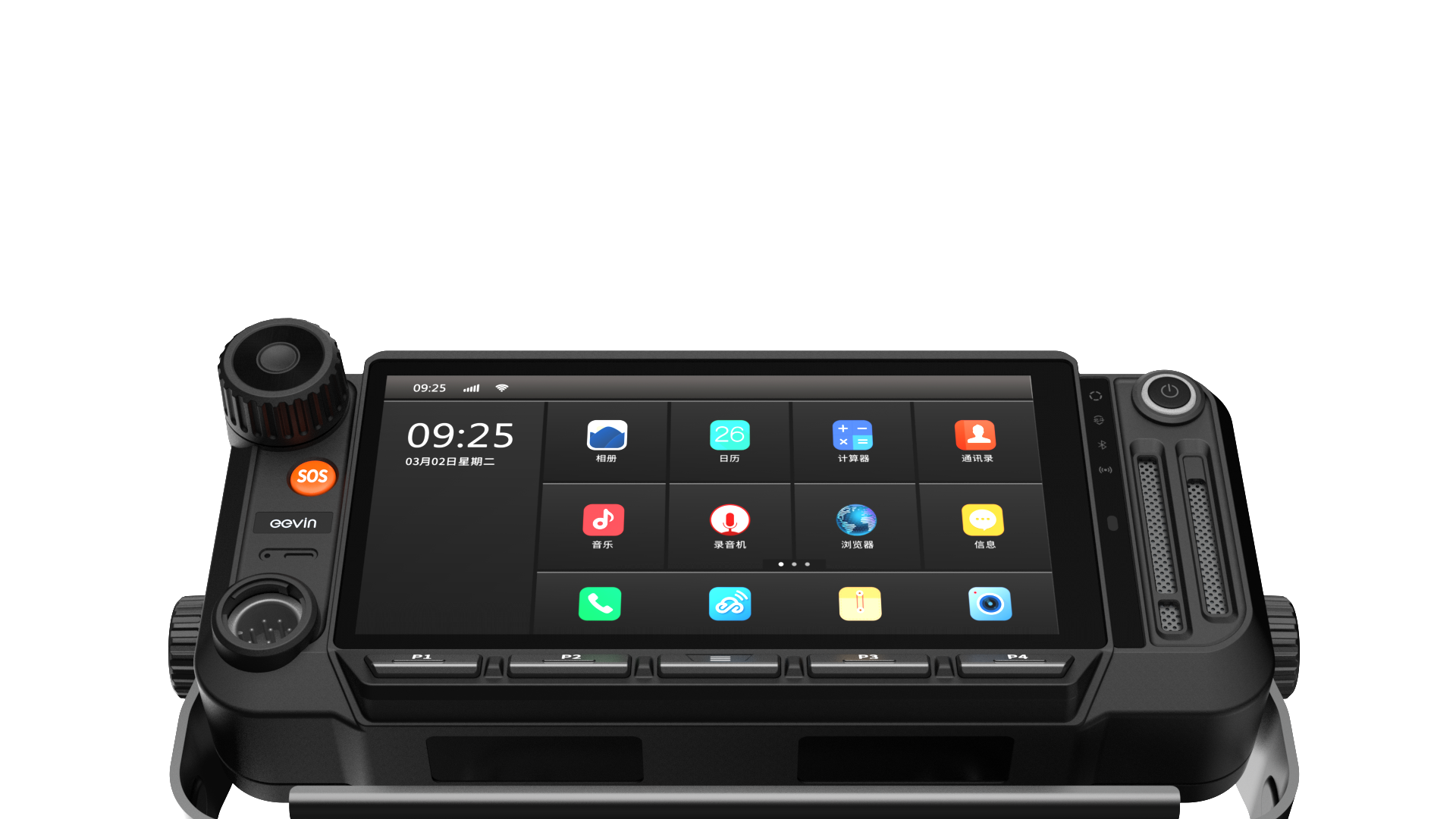

EC800 LTE Vehicle Terminal is a high-performance communication terminal customized for industry users. It is equipped with a 5.99-inch high-definition touch screen/5W high-power speaker, a customized Android operating system, can meet real-time voice and video calling, commanding and dispatching and other functions. Its external antenna design enhances signal strenth and stability.Supporting 3 extenal cameras and other accessories,catering to a variety of work needs.

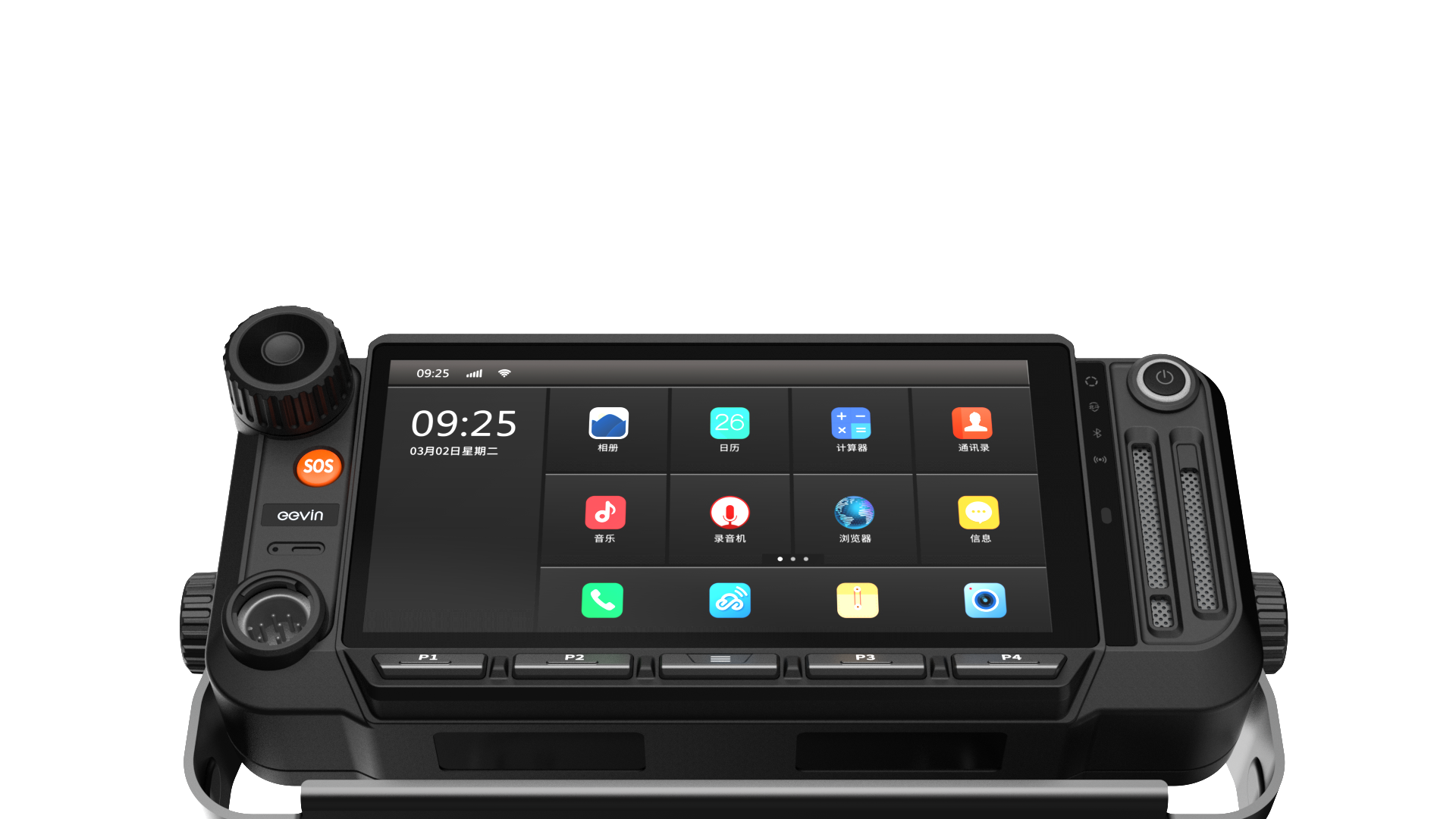

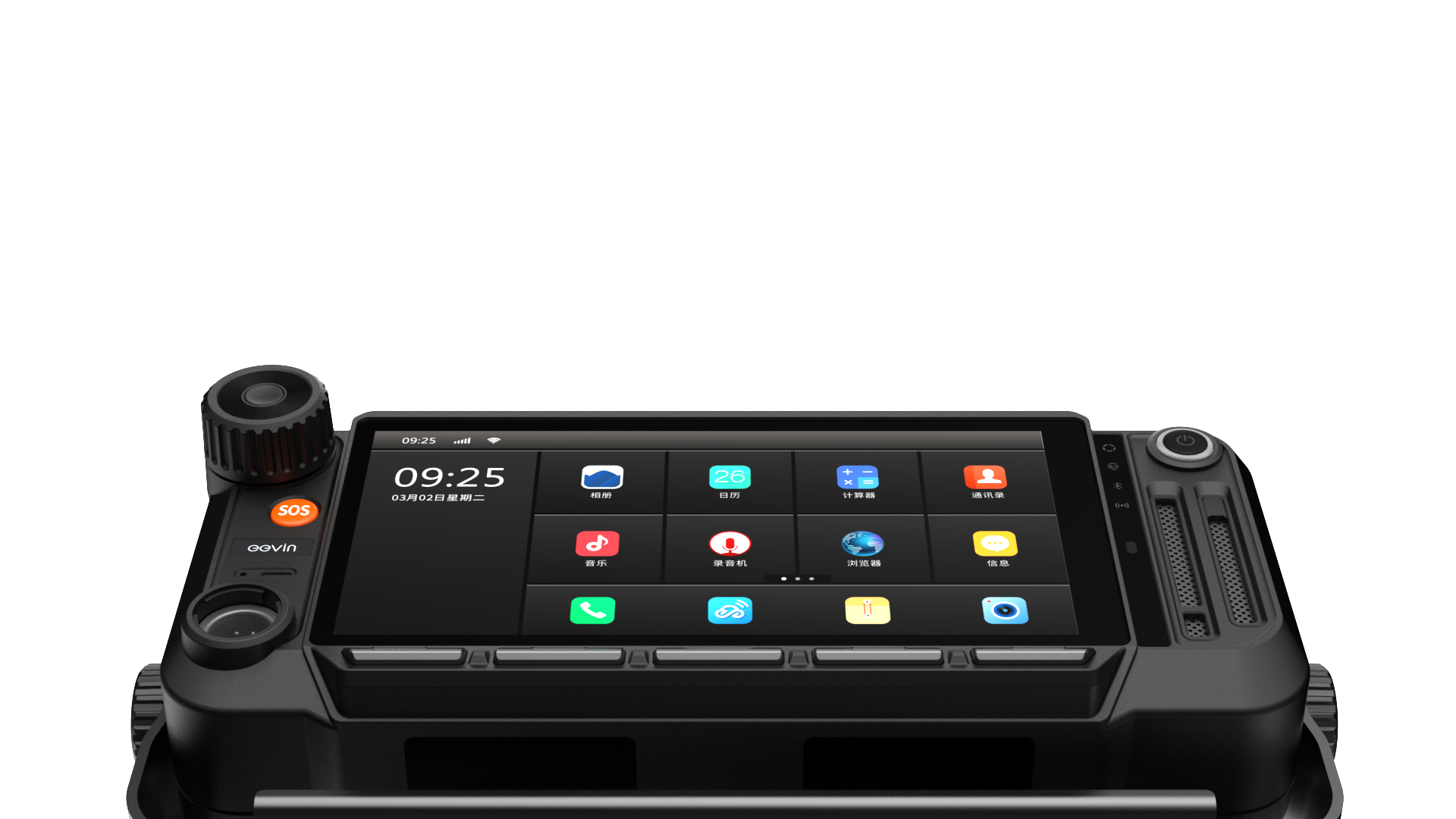

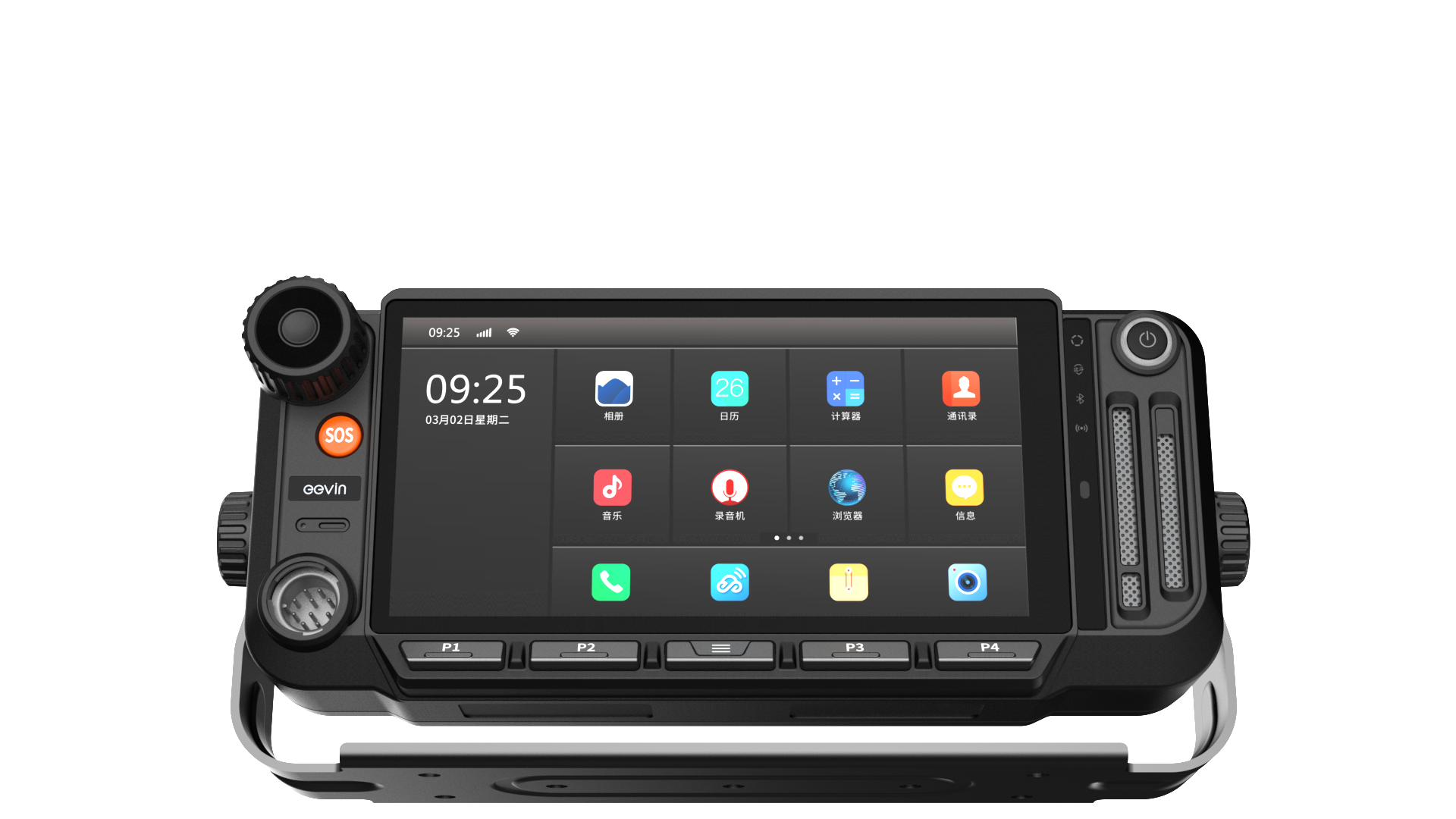

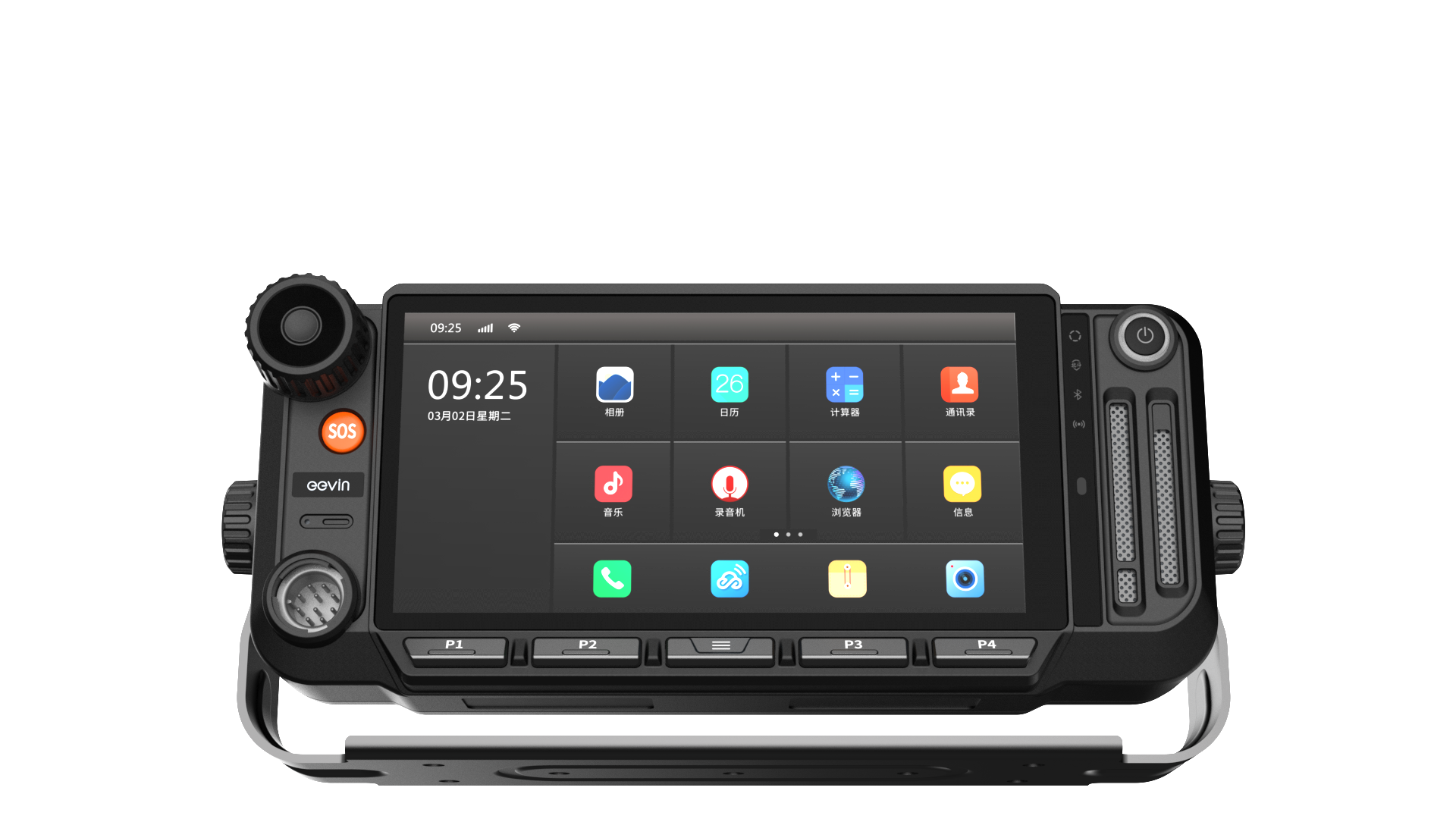

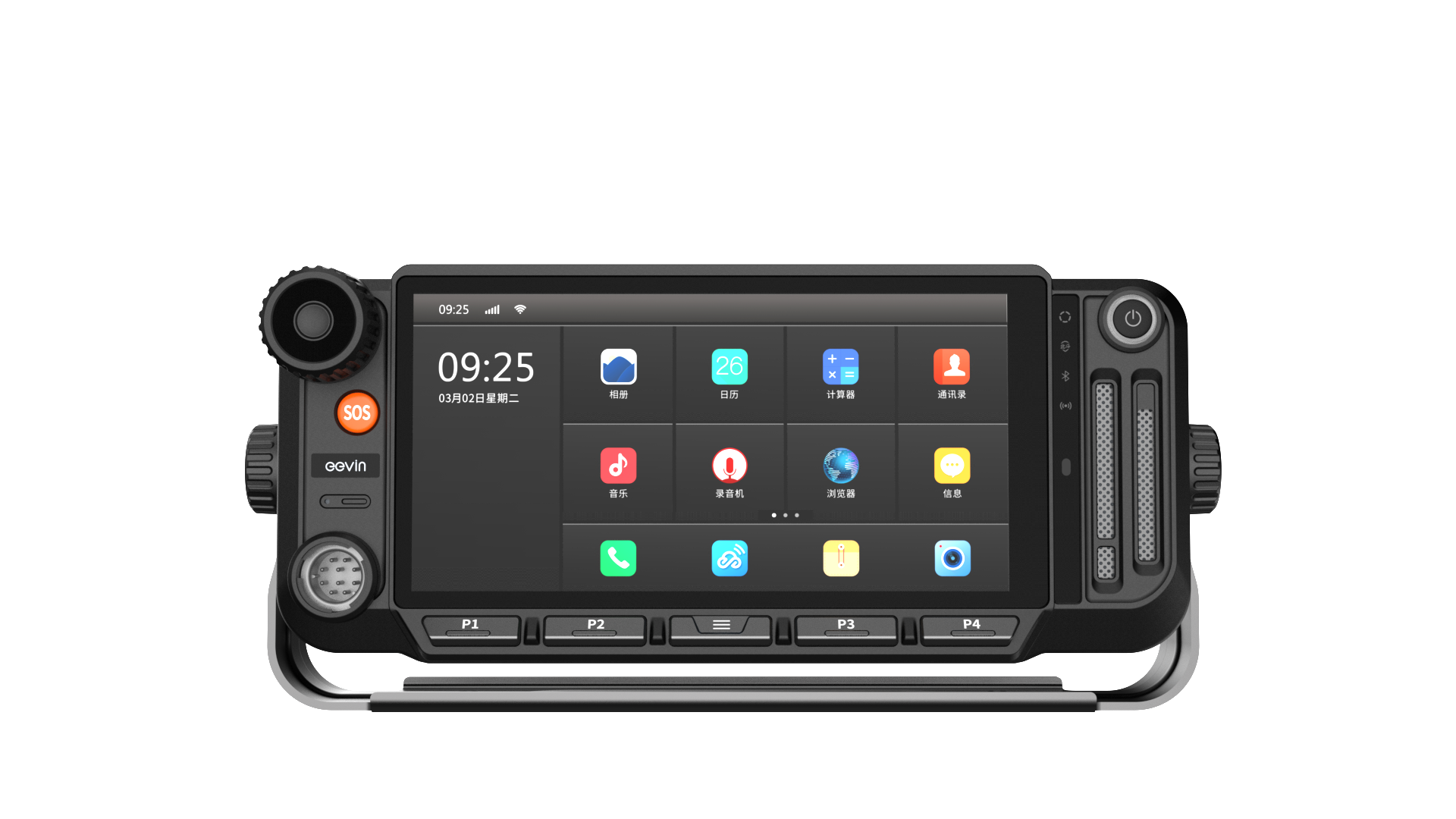

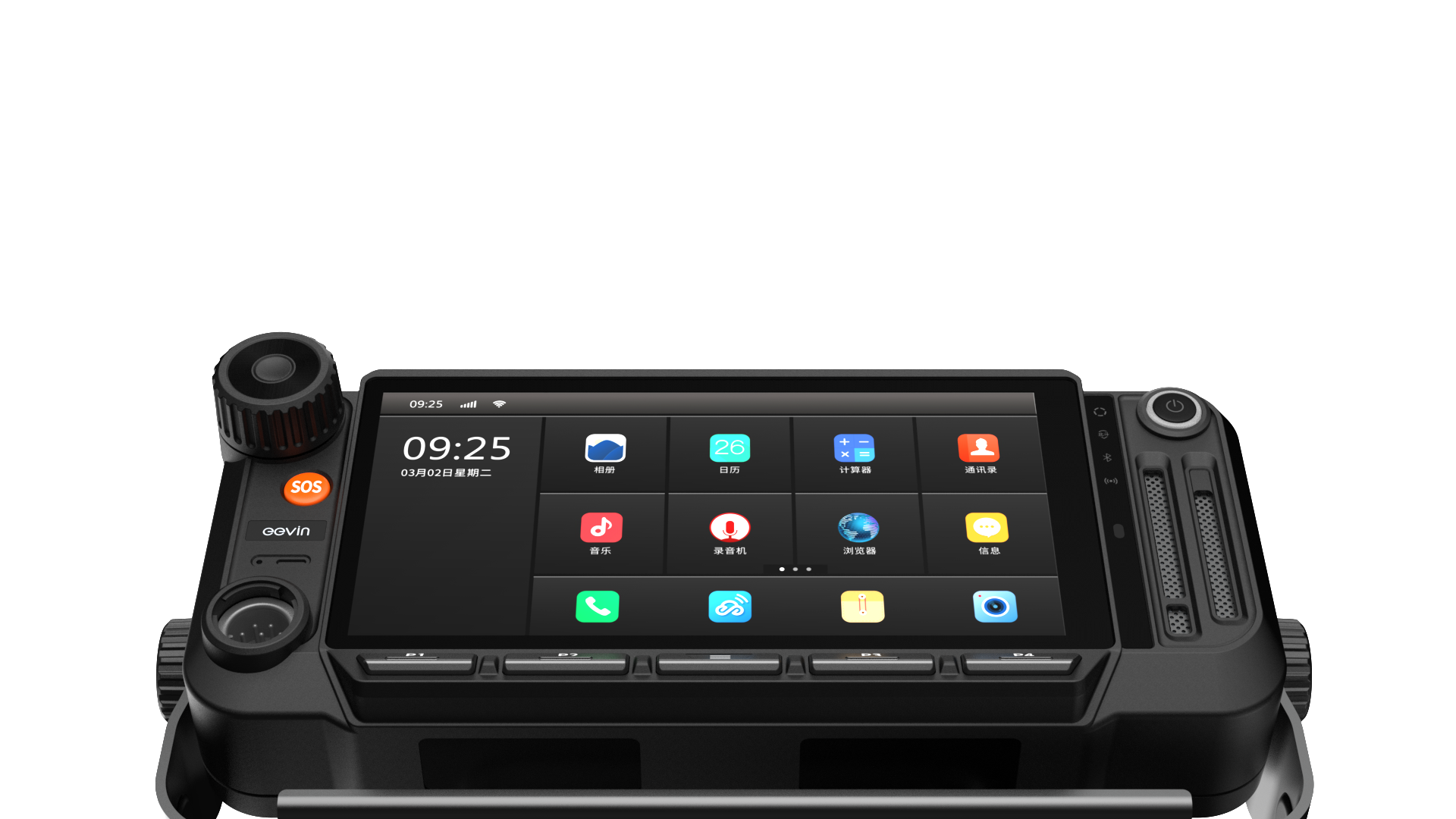

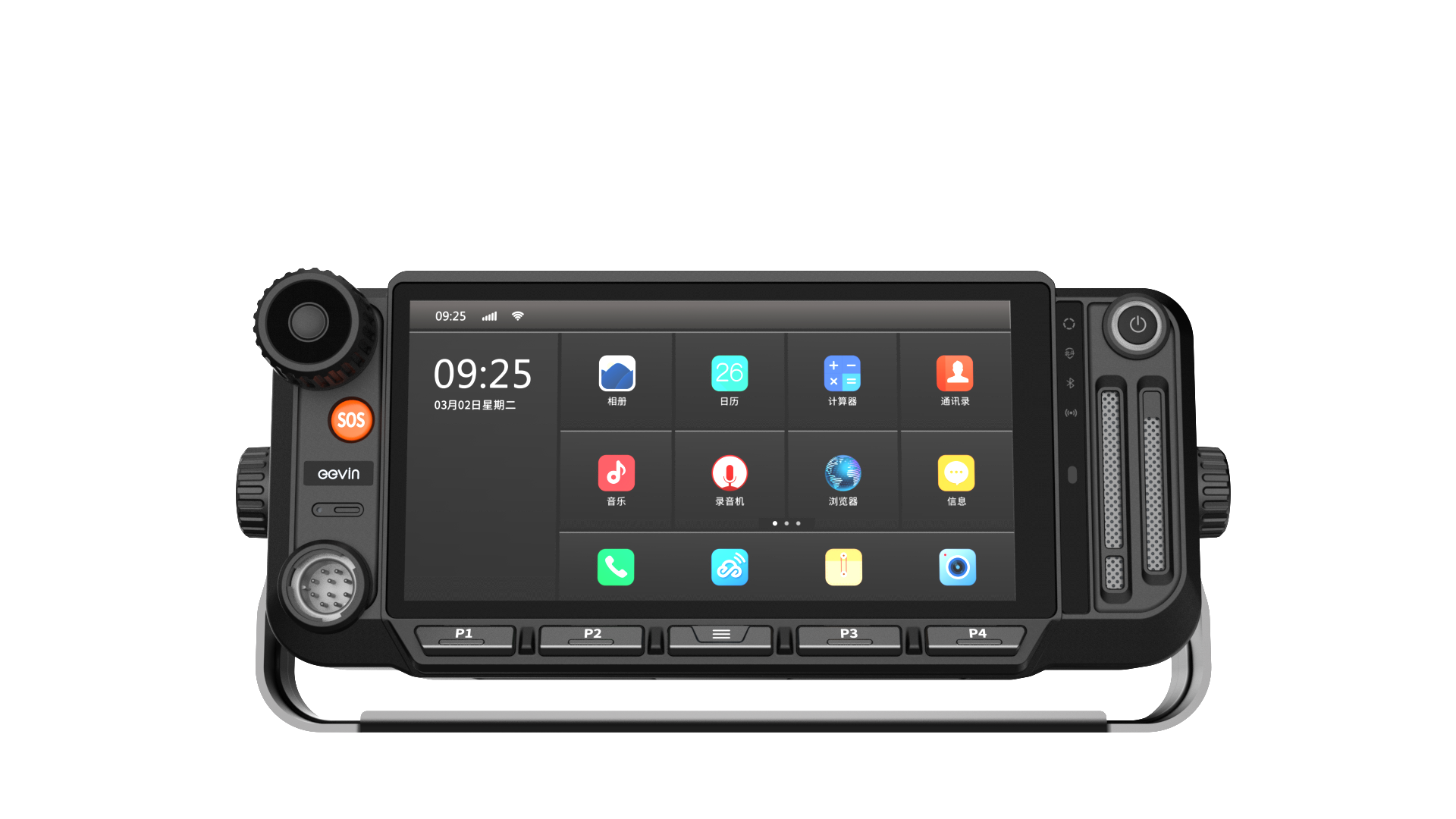

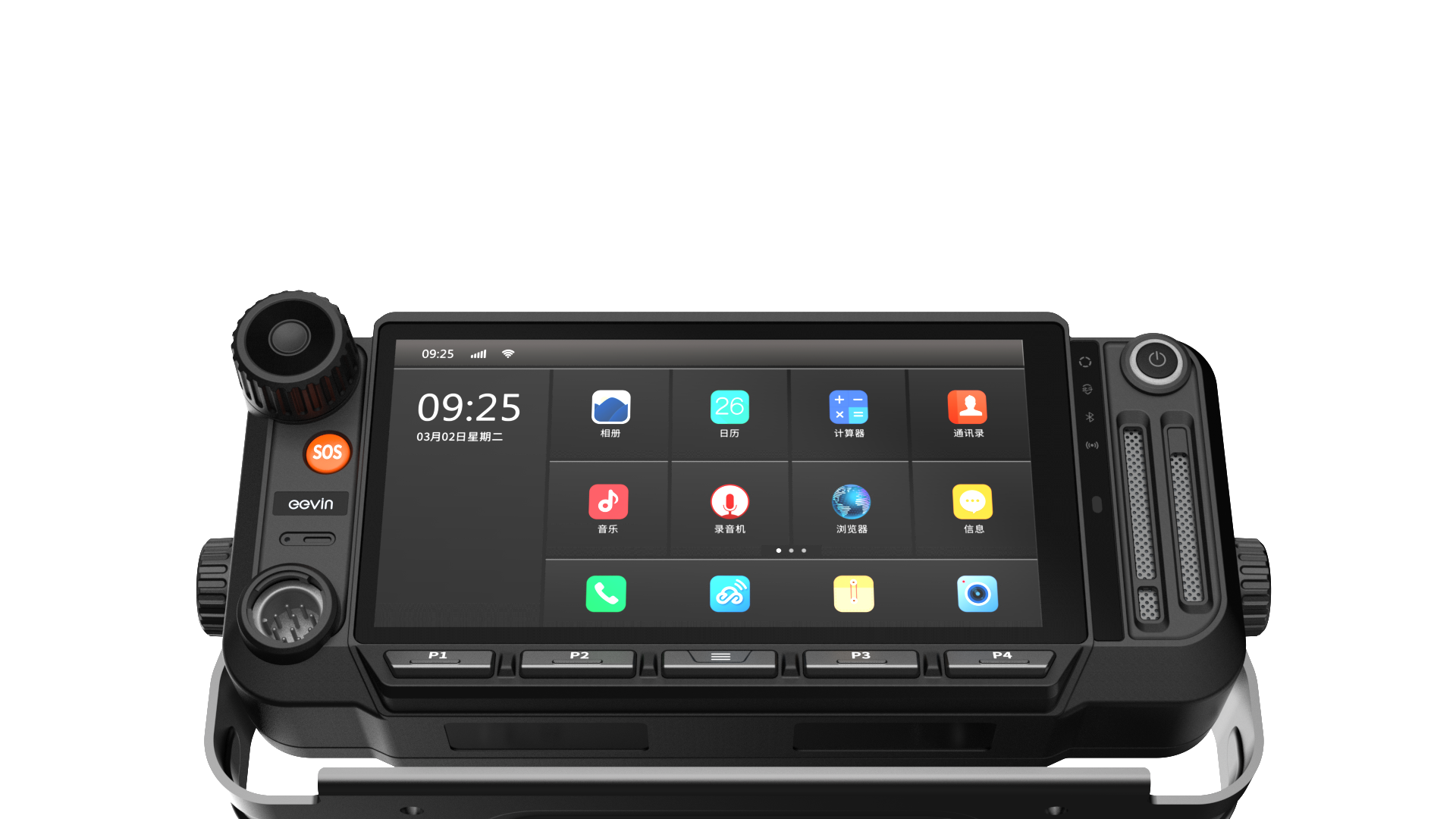

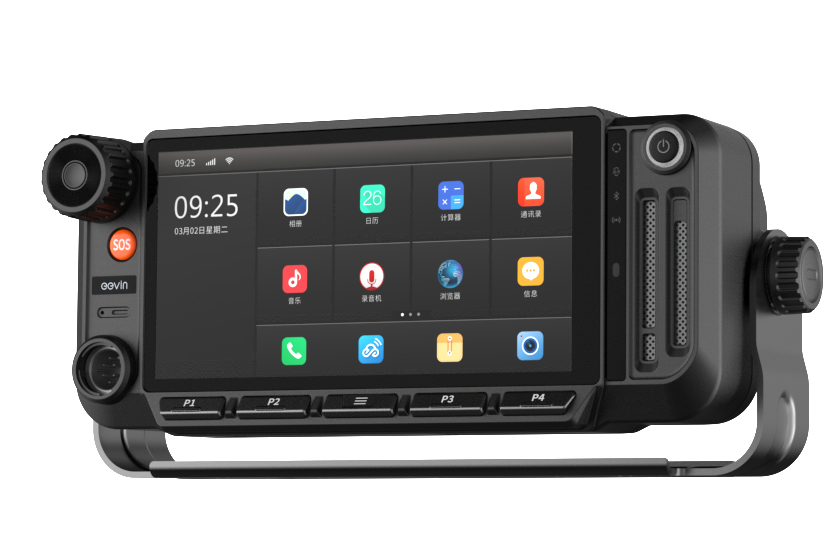

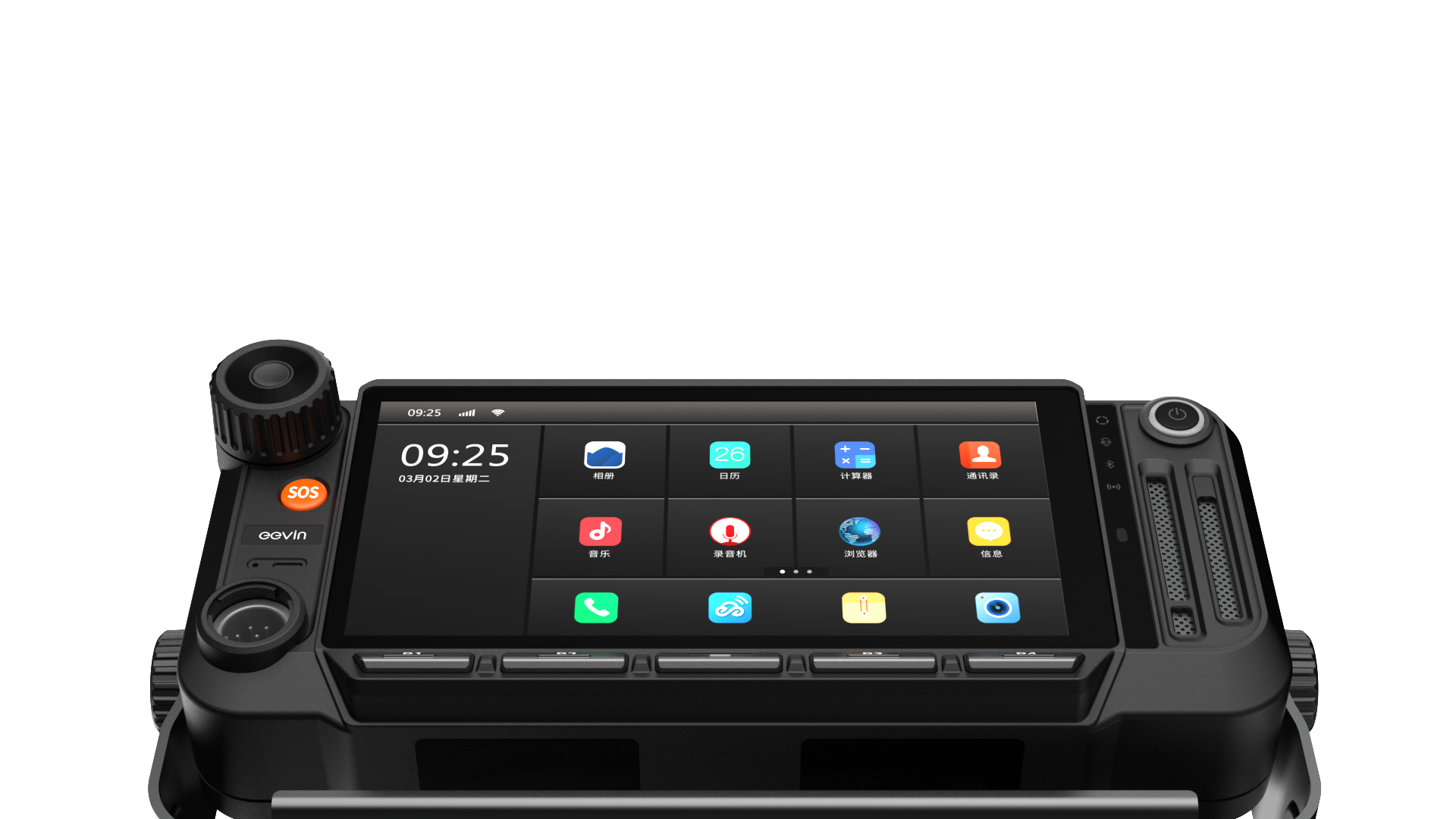

5.99-inch high-definition touch screen with multiple interfaces that can meet the connection of external cameras simultaneously for visual command and control
5.99-inch high-definition touch screen with multiple interfaces that can meet the connection of external cameras simultaneously for visual command and control
Meets the needs of efficient and secure command and control in the industry
Supporting BEIDOU satellite short message
6GB RAM ,utilizing the Android 12 operating system,compatible with multiple business functions.External antenna provides stronger and stable signal coverage
Supporting full network communications. Supports functions such as one to one call, group call, broadcast call, and temporary group call
| Dimensions/Size | 212mm*93mm*58mm |
|---|---|
| Battery capacity | Weight: 442g (accessories not included) |
| Communication network | 3G:WCDMA:B1/B2/B5/B8; TD_SDMA:B34/B39; CDMA:BC0; 4G:LTE_FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28A&B/B66; LTE-TDD:B34/B38/B39/B40/B41 . |
| Chip and system | Two ARM? Cortex-A75 cores operating up to 2.0GHz, running on Android 12.0 operating system. |
| Memory | RAM: 4GB, ROM: 64GB, expandable up to 128GB storage. |
| Card slot | Supports 1 SIM card slot and 1TF card slot. |
| Display screen | LCD 5.99 inch WVGA IPS screen(narrow screen），1080x2160，serial backlight. |
| Intercom performance | Equipped with a 5W high-power speaker. |
| Keypad/buttons | Power button*1;channel knob*1;SOS button*1;Home button*1;Programmable buttons*4. |
| Localization function/Positioning capability | GPS/BeiDou/GLONASS/AGPS. |
| Wireless connectivity | Supports wireless connections including Bluetooth 5.0, 2.4G/5G WiFi. |

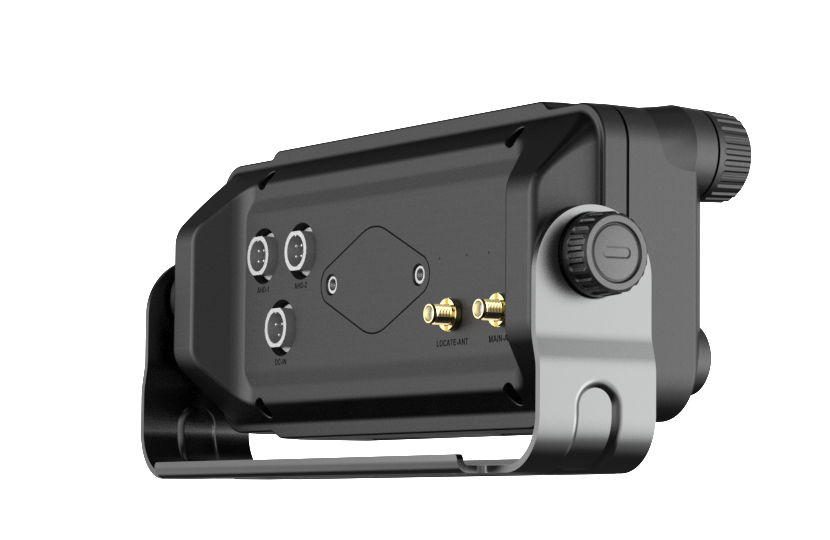

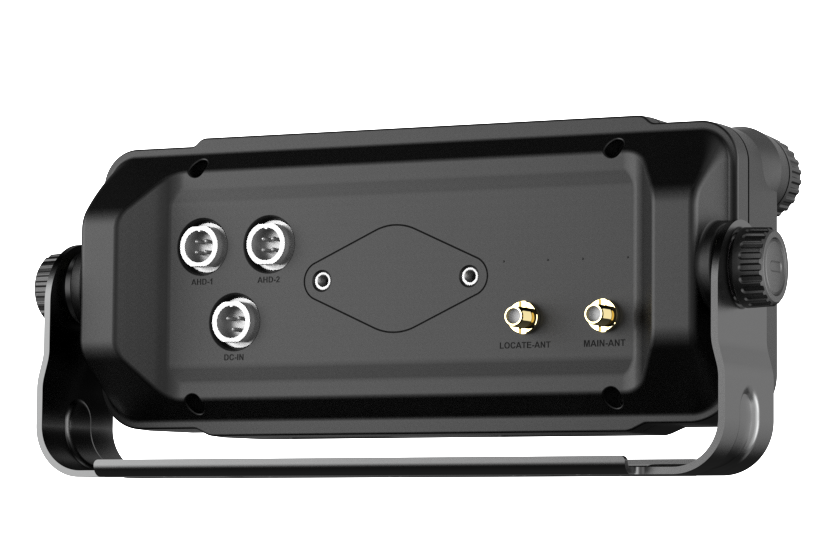

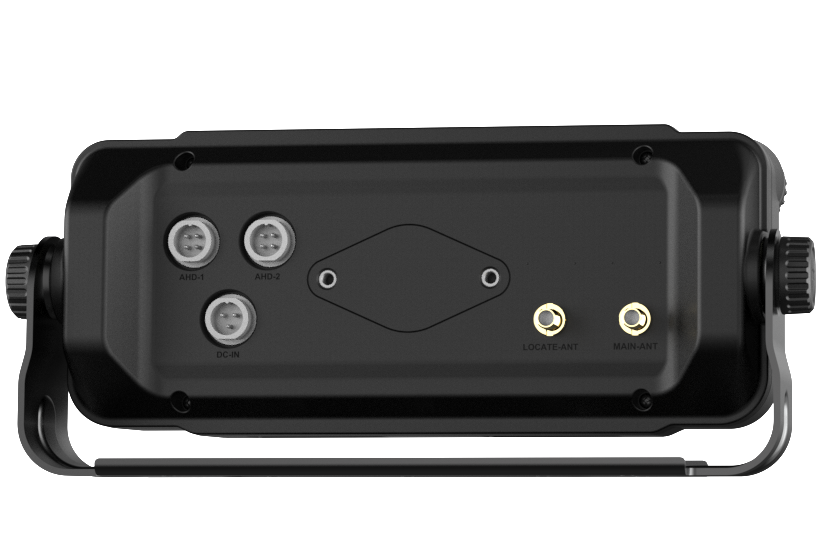

| Expansion interface | Antenna interfaces(SMA)*2;10 pin aviation interface*1; 4pin aviation interface*1;TYPE-C interface*1 ; 3 pin aviation interface*2; 3.5mm audio interface*1. |
| Protection performance | IP54 waterproof and dustproof rating. |
| Member Information | |
|---|---|
| Address Book |
|
| Personnel Status and Location Information |
|
| Device Status |
|
| Voice Dispatch | |
| Group Call |
|
| Private Call |
|
| Temporary Group Call |
|
| Network Adaptive Function |
|
| Secure Encryption |
|
| One-Button Alarm |
|
| IP Two-Way Voice Call | ? |
| IP Two-Way Video Call | ? |
| IP Voice Conference | ? |
| Call Command Center | ? |
| Video Dispatch | |
| Video Push and Pull | ? |
| Simultaneous Voice Intercom during Video Push and Pull | ? |
| Network Adaptive Jitter | ? |
| Video Recording Storage | ? |
| Recording Playback | ? |
| GIS Map Dispatch | |
| Display of Terminal Online and Offline Status |
|
| Terminal Positioning Supporting Pure GPS and Hybrid Positioning Simultaneously |
|
| GIS Map Monitoring |
|
| Real-Time Positioning and Tracking |
|
| Historical Trajectory Playback |
|
| Multimedia Messaging | |
| Intra-group Multimedia Messages |
|
| Image, Voice, and Video Sending | ? |
| Image and Video Capture and Transmission | ? |
| Broadcast Messages |
|
| Dispatch Console Information Query and Preview |
|
| Task Management | |
| Task Assignment |
|
| Task Feedback and Completion |
|
| Task Inspection and Verification |
|
| Workflow Applications | |
| Attendance Check-In and Check-Out |
|
